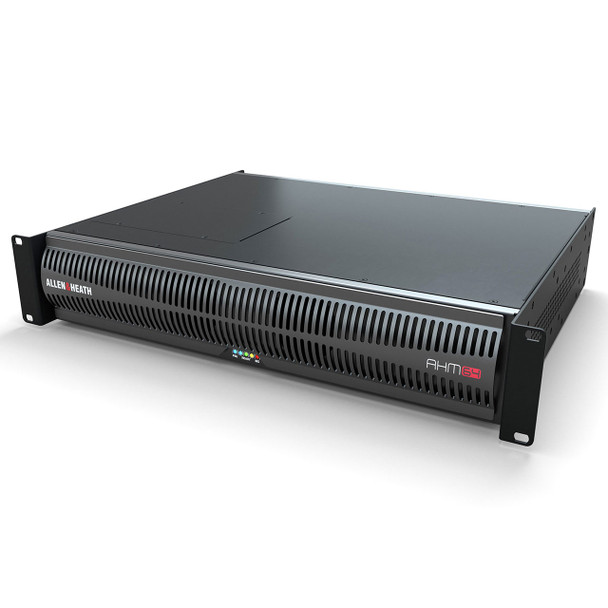

Allen & Heath AHM-64 64X64 Audio Matrix Processor

AHM is a family of powerful Audio Matrix Processors supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. The AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.

FEATURES

• 64×64 Processing Matrix
• 12×12 Local Analogue I/O
• I/O Port for Audio Networking (Up to 128×128)
• Dante 96kHz Option Card (AES67 and DDM ready)
• 128×128 Built-in SLink Port for Audio Expansion
• 64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
• 96kHz FPGA Core With Ultra-low Latency
• Compatible With IP1, IP6, IP8 Remote Controllers
• 2×2 Local GPIO Plus Networkable GPIO Interface
• TCP/IP Protocol for Third Party Integration
• Crestron, AMX and Extron Drivers
• Mac / Windows System Manager Software
• Custom Control app and Editor for BYOD
• 32 User Profiles
• Integrated Stereo Playback
• Event Scheduler
• DC backup power supply

AHM-64 Datasheet
