Beam Clamp 3/8"

Write a Review
Availability:
Usually ships within 2 business days when in stock.

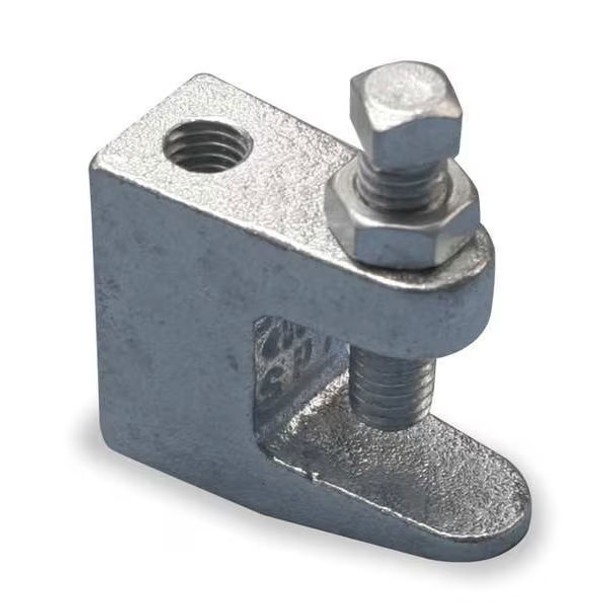

  • Beam Clamp 3/8"
  • Beam clamp in use
$2.50
Frequently bought together:

Description

This 3/8" Beam Clamp is designed to connect/suspend threaded rod directly to H-beam; I-beams (up to 3/8" thick).

DETAILS

  • Nominal/Conduit Pipe: 3/8 in.
  • For Use With: H-Beam; I-Beam
  • Load Capacity: 500 lb
  • Beam Mount Location: Bottom, Top
  • Max. Load: Top of Beam 500 lb. and Bottom 250 lb.
  • For Threaded Rod Size: 3/8 in.
  • Overall Length: 48.42 mm
  • Width: 1 1/8 in.
  • Length: 3/4 in.
  • Thread Size: 3/8 in.
  • Height: 39.70 mm
  • Width: 20.62 mm
  • Length: 48.42 mm
  • Clamp Length: 0.75 in.
  • Clamp Width: 1.13 in.
  • Material: Cast Iron
  • Finish: Electro Galvanized
  • Bolt Material: Cast Iron
  • Standards: ANSI/MSS-SP-58 (Type 19 & 23), Conforms with Federal Specification WW-H-171 (Type 23), UL Listed and FM Approved
