Beam Clamp with 3/4" Throat
- MPN:
- 015-798
- Availability:
- Usually ships within 2 business days when in stock.
Frequently bought together:
Description

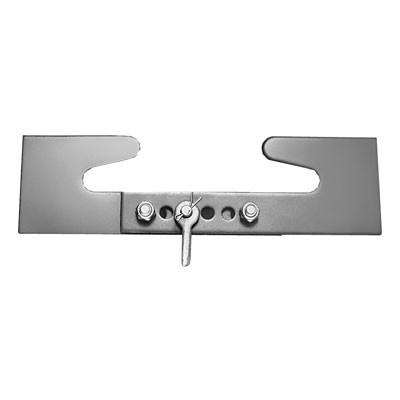

Beam Clamp with a 3/4" throat
FEATURES
- Used for attaching chains or lines to beams for dead hanging or guide wires
- Includes two 3/8" x 1" (10 x 25 mm) Grade 5 hex bolts with lock nuts, and a 1/4" (6 mm) round pin anchor shackle
SPECIFICATIONS
- Throat: 3/4"
- Grips flanges: 5" to 9" (121 to 216 mm)
- Recommended Working Load (RWL): 350 lb (159 kg)
- Weight: 2 lb (0.9 kg)
NOTE: RWL is maximum load that can be applied to a block which is in “like new” condition and has been properly installed, maintained and operated.
