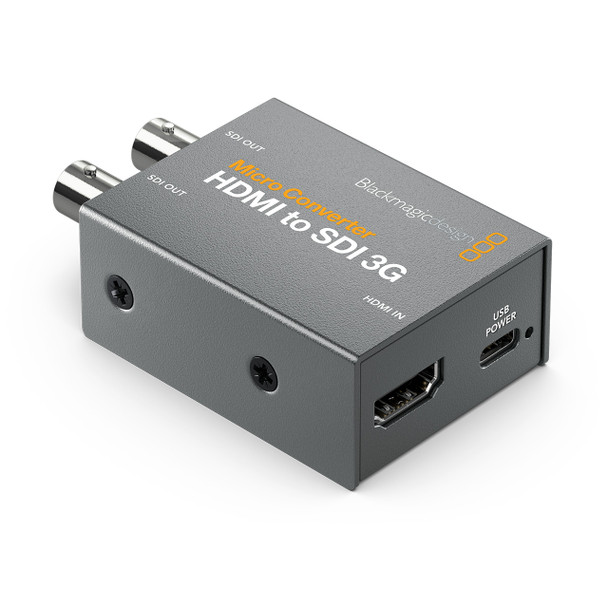

Blackmagic Design Micro Converter HDMI to SDI 3G (No Power Supply)

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.

*Note: This product does not include the power supply.

CONNECTIONS

• SDI Video Outputs:
  • 2 x SD, HD or 3G-SDI
  • Automatically matches the HDMI video input
• HDMI Video Inputs: HDMI Type A in
• Multi Rate Support: Auto detection of SD or HD
• Updates, Configurations and Power: USB Type‑C
• Reclocking: Yes

STANDARDS

• SDI Video Standards
  • 525i59.94 NTSC, 625i50 PAL
• HD Video Standards
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• SDI Compliance
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates
  • SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B 3G-SDI via setup utility.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
• HDMI Video Standards
  • 525i29.97 NTSC, 625i25 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2
• HDMI Color Space: YUV

COPY PROTECTION

• HDMI input is unable to capture from copy protected HDMI sources
• Always confirm copyright ownership before capture or distribution of content

SOFTWARE

• Software Control: Mac and Windows™ software via micro USB
• Internal Software Upgrade: Via micro USB
• Operating Systems:
  • Mac 10.14 Mojave, Mac 10.15 Catalina or later
  • Windows 10
• Settings Control: Via software utility

POWER

• Power Supply: Not included
• Power Consumption: 2.0 W
• Operational Voltage Range: 4.4 to 5.25V DC

ENVIRONMENTAL

• Operating temperature: 0° to 40° C (32° to 104° F)
• Storage temperature: -20° to 60° C (-4° to 140° F)
• Relative Humidity: 0% to 90% non-condensing

WHAT'S INCLUDED

• Micro Converter HDMI to SDI

WARRANTY

• 3 Year Limited Manufacturer's Warranty
