Blackmagic Design Micro Converter SDI to HDMI 12G with Power Supply

Write a Review
MPN:
CONVCMIC/SH12G/WPSU
Availability:
Usually ships within 2 business days when in stock.

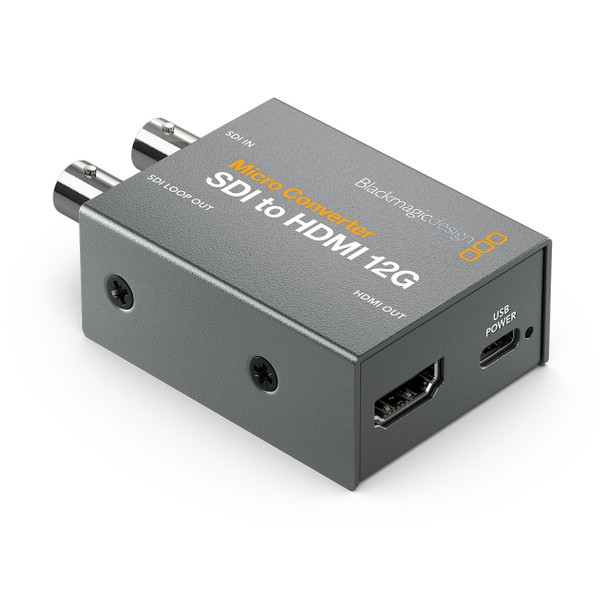

  • Blackmagic Design Micro Converter SDI to HDMI 12G right angle
  • Blackmagic Design Micro Converter SDI to HDMI 12G front
  • Blackmagic Design Micro Converter SDI to HDMI 12G left angle
  • Power Supply
$179.00
Frequently bought together:

Description

The Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.

FEATURES

  • Micro Converter SDI to HDMI 12G
  • Use Anywhere! Pocket sized broadcast quality converters!
  • Miniaturized Design. Precision engineered broadcast grade converters!
  • Broadcast Quality. Big converter quality, miniaturized!
  • Update and Change Settings!
  • Monitoring with 3D LUTs. Get color accurate monitoring on any type of display!
  • Latest HDR Support
  • Includes HDMI Timecode Support
  • SDI Re‑clocking. Perfect for longer SDI cable lengths
  • Get Ultra HD and 4Kwith 12G-SDI Models
  • USB or AC Power via USB or optional power supply!

WHAT'S INCLUDED

  • Micro Converter SDI to HDMI 12G w/ PSU
  • +5V universal power supply with international socket adapters

SPECIFICATIONS

CONNECTIONS

  • SDI Video Inputs: 1 x SD, HD or 12G-SDI.
  • SDI Video Outputs: 1 x SDI loop out.
  • HDMI 2.0 Outputs: 1 x HDMI Type A out.
  • SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
  • Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K.
  • Updates and Configuration: USB Type‑C.

STANDARDS

  • SDI Video Standards:
    • 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards:
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    • 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards:
    • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
  • Ultra HD Video Standards:
    • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards:
    • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI./li>
  • SDI Compliance:
    • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE 2108-1
  • SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI.
  • SDI Color Precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • SDI Color Space: YUV
  • SDI Auto Switching: Automatically detects SD, HD level A or B for 3G‑SDI, 2K DCI, Ultra HD and 4K DCI.
  • HDMI Video Standards:
    • 525i29.97 NTSC, 625i50 PAL
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    • 1080i50, 1080i59.94, 1080i60
    • 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
    • 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI.
  • HDMI Color Precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color.
  • HDMI Color Space: YUV

SOFTWARE

  • Settings Control: MacOS™ and Windows™ software upgrade via USB.
  • Operating Systems:
    • Mac 10.15 Catalina,, Mac 11.1 Big Sur or later.
    • Windows Icon, Windows 10, 64-bit.
  • Software: Internal software upgrade via USB.

POWER REQUIREMENTS

  • Power Supply: +5V universal power supply included with international socket adapters for most countries.
  • Power Consumption: 4 Watts
  • Operational Voltage Range: 4.4V to 5.25V DC
