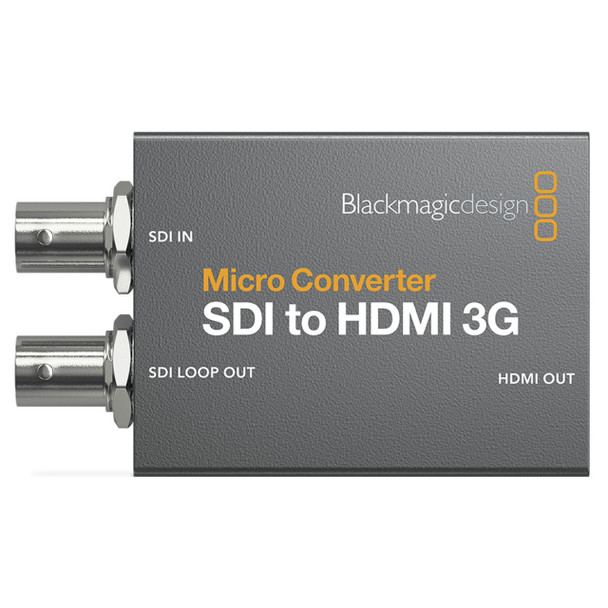

Blackmagic Design Micro Converter SDI to HDMI 3G (No Power Supply)

The Blackmagic Design Micro Converter - SDI to HDMI with Power Supply has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. Includes 100 to 240V AC power supply with international socket adapters

WHAT'S INCLUDED

• Micro Converter SDI to HDMI 3G w/ PSU

SPECIFICATIONS

CONNECTIONS

• SDI Video Inputs: 1 x SD, HD or 3G-SDI.
• SDI Video Outputs: 1 x SDI loop out.
• HDMI Outputs: HDMI Type A out.
• Multi Rate Support: Auto detection of SD or HD.
• Updates and Configuration: USB Type‑C.

STANDARDS

• SDI Video Standards:
  • 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30
  • 1080i50, 1080i59.94, 1080i60
  • 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• SDI Compliance:
  • SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
• SDI Video Rates: SDI video connections are switchable between standard definition, 720p, 1080i, 1080p and DCI high definition.
• SDI Color Precision: 4:2:2
• SDI Color Space: YUV
• SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G‑SDI.
• HDMI Video Standards:
  • 525i29.97 NTSC, 625i50 PAL
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
• HDMI Color Space: YUV

SOFTWARE

• Settings Control: MacOS™ and Windows™ software upgrade via USB.
• Operating Systems:
  • Mac 10.15 Catalina,, Mac 11.1 Big Sur or later.
  • Windows Icon, Windows 10, 64-bit.
• Software: Internal software upgrade via USB.

POWER REQUIREMENTS

• Power Supply: NOT included.
• Power Consumption: 1.6 Watts
• Operational Voltage Range: 4.4V to 5.25V DC
