Cam-Type Turnarounds

NOTE: This product may be from VARIOUS MANUFACTURERS. Product may vary slightly from description and pictures.

The Cam-Type Double Adapters are used in fabricating feeder cable extensions, tails, and adapters. The double adapters offers male-male or female to female connections, for coupling or turnarounds. This butt connector is also used while temporarily splicing electrical wires.

MM DETAILS

• Brand: Marinco or Leviton
• Gender: Male-Male
• Style Name: Detachable
• Compatible: Series 16 Taper Nose Multi-way connectors
• NEMA: 3R
• Max. Amperage: 400 Amps
• Max. Voltage: 600 Volt
• Contacts: Brass
• Strain Relief: Copper Wire

FF DETAILS

• Brand: Marinco or Leviton
• Gender: Female-Female
• Style Name: Detachable
• Connection Type: Double Set Screw
• Cable Range: 2/0 - 4/0 AWG
• NEMA: 3R
• Max. Amperage: 400 Amps
• Max. Voltage: 600 Volt
• Contacts: Brass
• Strain Relief: Copper Wire

Leviton 16 Series

Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.

• NEMA 3R rated for outdoor use when mated
• Designed with cylindrical profile to reduce snap
• UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating

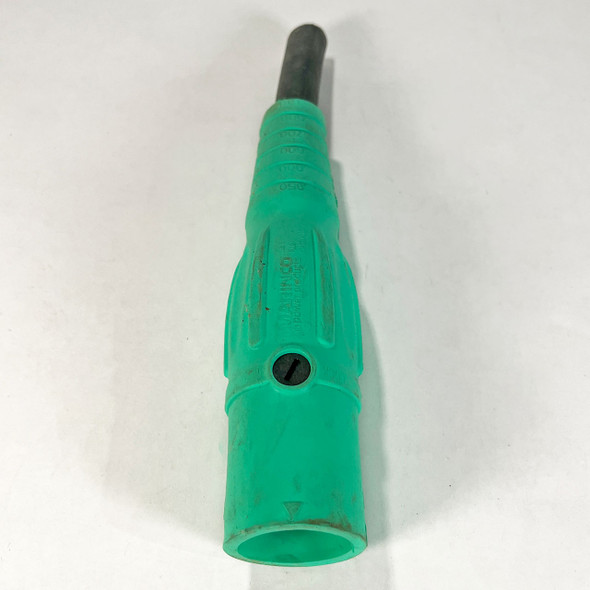

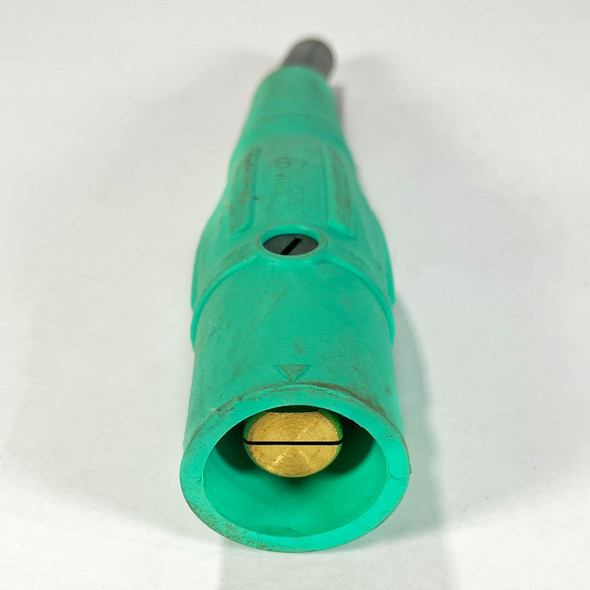

Marinco / Advance Device's CLS Series

Advanced Devices makes a NEMA 3R and 4 rated rubber CAM for the highest rain and waterproof performance. This CAM is CSA and CUS listed 400A 600V - 6 to 4/0 cable ready. Not only does the CLS series perform beautifully under wet conditions. Assembly and disassembly can be done with simple hand tools in a matter of minutes. The CLS series has a superior boot screw that threads through the entire contact for superior durability. The boot screw can handle far more torque and is not susceptible to stress breakage like many other similar devices. The CLS series connectors mate with all CAM type devices and meet 1999 NEC standards for locking type connectors.
