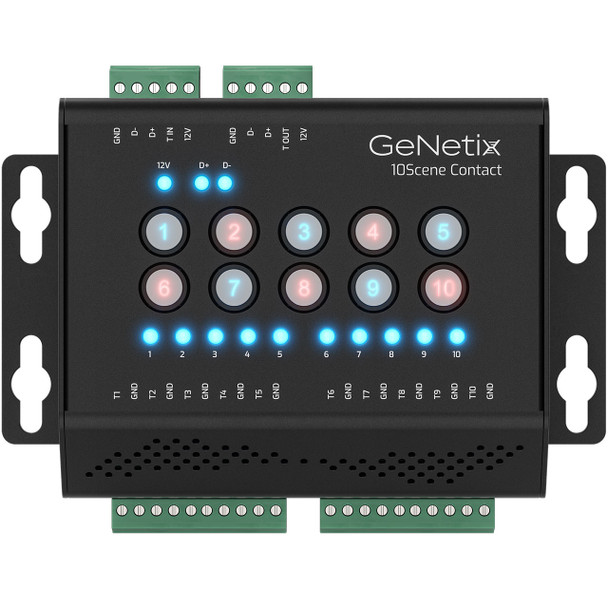

ChamSys GeNetix 10Scene Contact

GeNetix 10Scene Contact is a DIN rail mountable 10-input dry contact trigger interface that integrates ChamSys control solutions, enabling MagicQ and QuickQ Playbacks and Executes to be triggered by open/close contacts, as well as triggering scenes on GeNetix GN5 and GN10 nodes.

Its two 10Scene Ports allow the interface to be daisy-chained with 10Scene Wall Plates and up to ten 10Scene Contacts per chain, all connected via the 10Scene Protocol that also powers the interface.

The 10Scene Contact provides a user-friendly and easily-integrated solution for adding external dry contact trigger remote control to MagicQ, QuickQ, and GeNetix systems.

FEATURES

• 10 Open/Close Contact Trigger Inputs
• Compatible with MagicQ / QuickQ and GN5/GN10 GeNetix Nodes
• Connects via 10Scene Protocol
• Daisy chain together with 10Scene Wall Plates and 10Scene Contacts
• Triggers either Playbacks or Executes when connected to MagicQ or QuickQ Systems
• Triggers Scenes on GeNetix GN5/GN10 Nodes

WHAT'S INCLUDED

• GeNetix 10Scene Contact: 1
• DIN Rail Mount Clip: 1
• Quick Start Guide: 1

SPECIFICATIONS

HARDWARE

• Contact Trigger Inputs: 10
• 10Scene Ports: 2
• 10Scene Test Buttons: 10
• Max No of 10Scene Contact or 10Scene Wall Plates per chain: 10
• DIN Rail Mounted: Yes
• Powered via 10Scene Protocol: Yes

SOFTWARE

• Compatible with QuickQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
• Compatible with both MagicQ Consoles/Rack: Yes (via 10Scene connectors or via Gateway)
• Compatible with GN5/GN10/GN10P/GN10R: Yes

DIN WEIGHTS AND DIMENSIONS

• Width: 4.09 in. (104 mm)
• Depth: 3.42 in. (87 mm)
• Height Inc DIN Clip: 2.55 in. (65 mm)
• Weight: 0.88 lb (0.4 kg)
