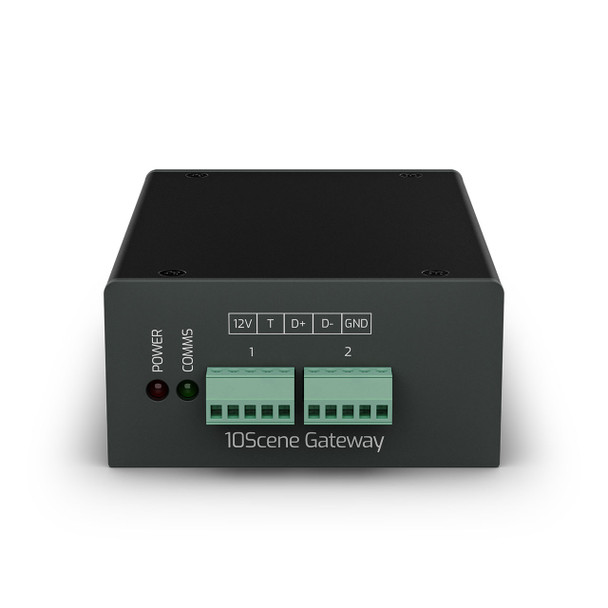

ChamSys GeNetix 10Scene Gateway
- MPN:
- CHAMSS10SCGATEWAY
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description
10Scene Gateway is the interface to connect between 10Scene wall plates and MagicQ/QuickQ systems. Converting from the 10Scene to ChamSys remote protocol, allowing 10Scene Wall plates to integrate with MagicQ & QuickQ consoles.
With two 10Scene ports allowing upto 20 10Scene Wall plates to be connected to it, the Gateway interface is the perfect solution for adding user friendly and simple remote control to installations.
The gateway interface can be powered via external power supply or via PoE.
FEATURES
- Two 10Scene ports
- Connection for up to 20 wall plates
- One Network port
- Powered via external power supply or via PoE
- Compatibile with both MagicQ & QuickQ systems
- DIN Rail Mountable
WHAT'S INCLUDED
- GeNetix 10Scene Gateway
- DIN Rail Mount Clip
- 12V Power Supply
SPECIFICATIONS
HARDWARE
- 10Scene Ports: 2
- Max no of 10Scene Wall Plates Supported: 20
- Contact Trigger Inputs: 2
- Network Port: 1
- Unlocks MagicQ PC from ‘Demo Mode’: No
- PoE Voltage Supported: 37-57v
- PoE Supported Types: 802.3af Type1, 802.3at Type 2, 802.3bt Type 3 and 4
WEIGHTS AND DIMENSIONS
- Width: 5.3 in. (133 mm)
- Depth: 3.4 in. (88 mm)
- Height: 1.7 in. (45 mm)
- Weight: 0.3 lb (0.17 kg)
Related Products
Related Products

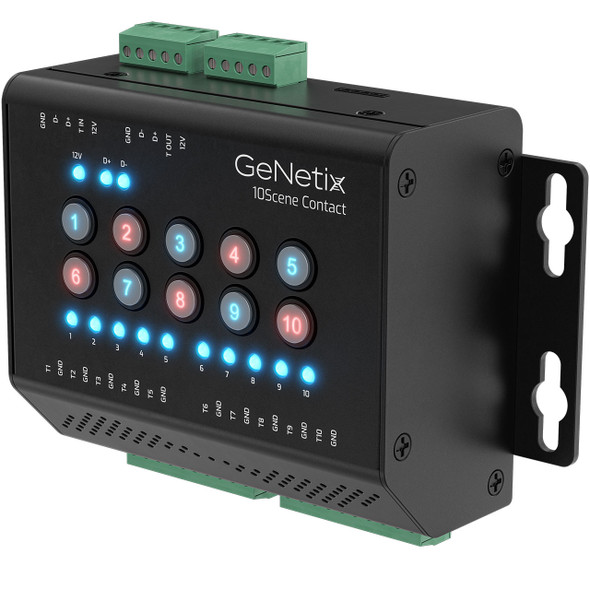

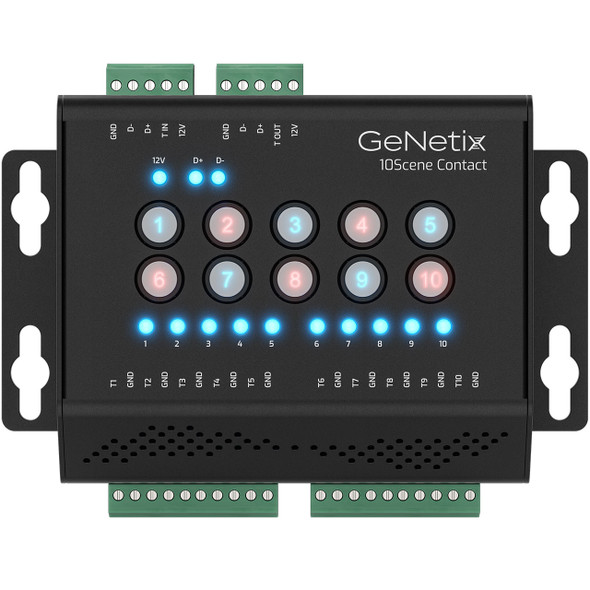

ChamSys GeNetix 10Scene Contact
Chamsys
$285.00
GeNetix 10Scene Contact is a DIN rail mountable 10-input dry contact trigger interface that integrates ChamSys control solutions, enabling MagicQ and QuickQ Playbacks and Executes to be triggered by...

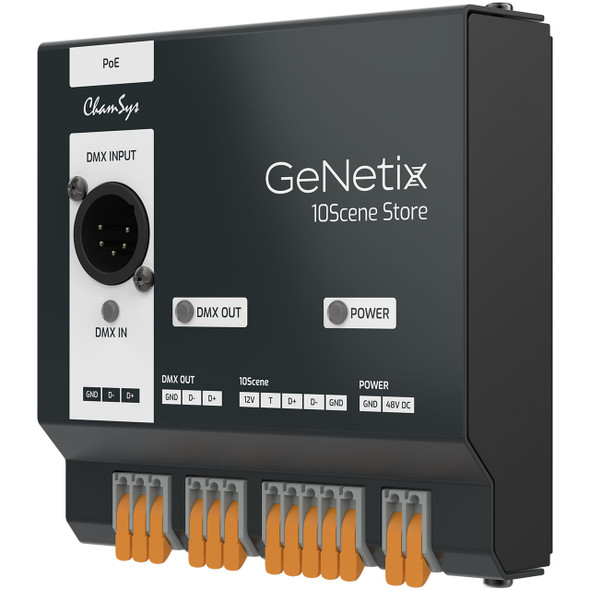

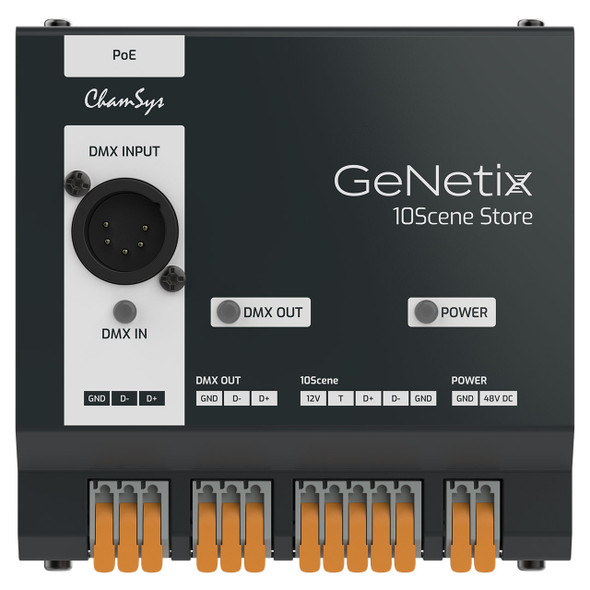

ChamSys GeNetix 10Scene Store
Chamsys
$585.00
GeNetix 10Scene Store is a single universe wall or DIN Rail mounted standalone playback device that stores 10 static lighting Scenes (cues) which can be recalled with connected 10Scene wall plates...

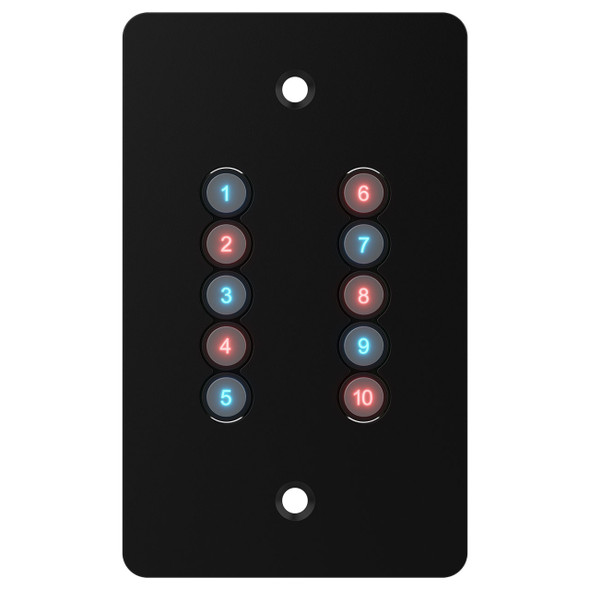

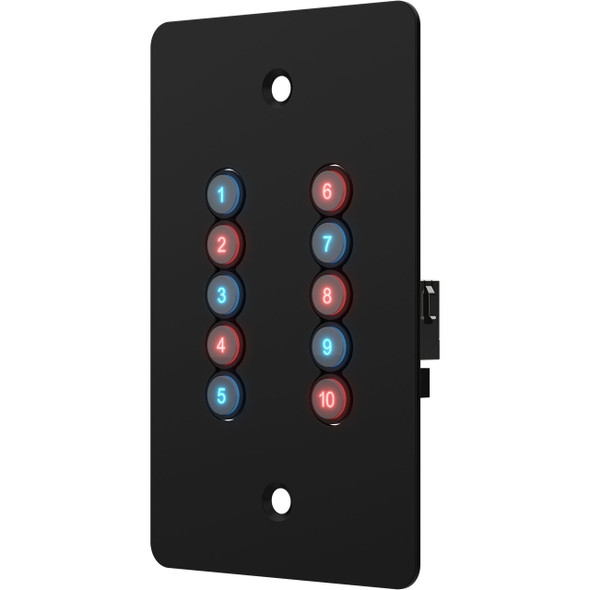

ChamSys GeNetix 10Scene Wall Plates V2 (Dual Pack)
Chamsys
$355.00
The 10Scene Wall Plate V2 features ten 10Scene trigger buttons, with dual color LED status indication.
Connect 10Scene wall plates directly to the MagicQ/QuickQ Racks and DINs or to the GeNetix...

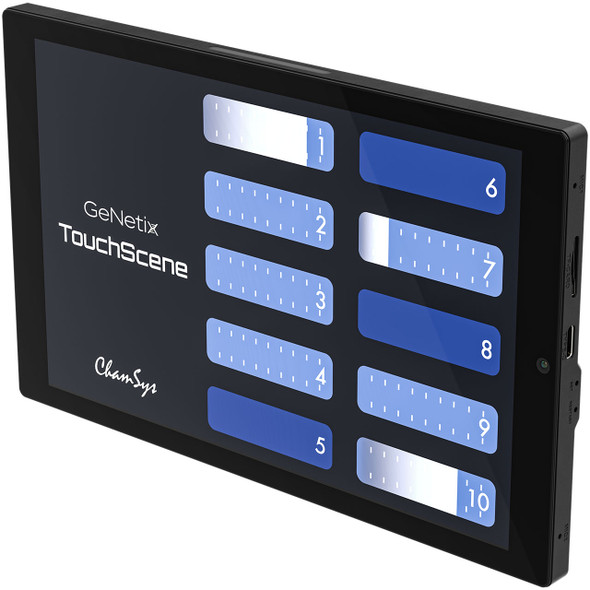

ChamSys GeNetix TouchScene
Chamsys
$830.00
GeNetix TouchScene elegantly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.
When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes...

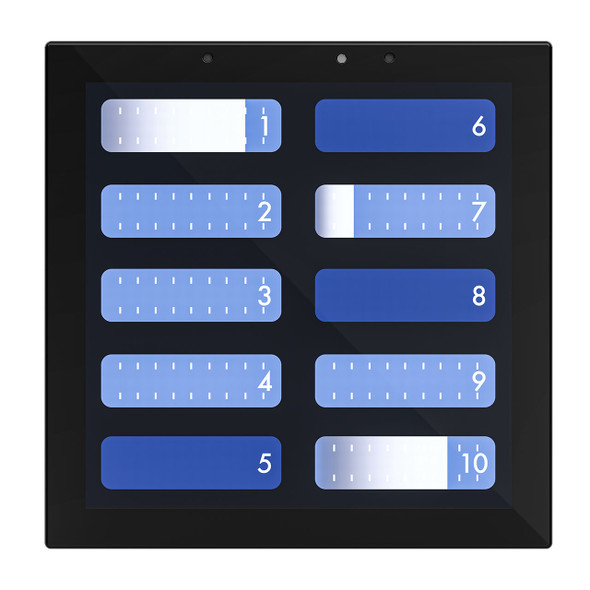

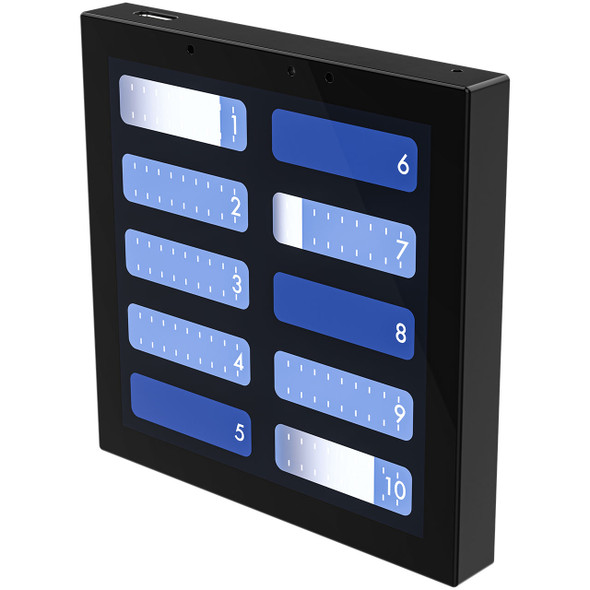

ChamSys GeNetix TouchScene Mini
