Chamsys
ChamSys GeNetix 10Scene Wall Plates V2 (Dual Pack)
- UPC:
- 781462231217
- MPN:
- GENETIX10SWALLUS
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description

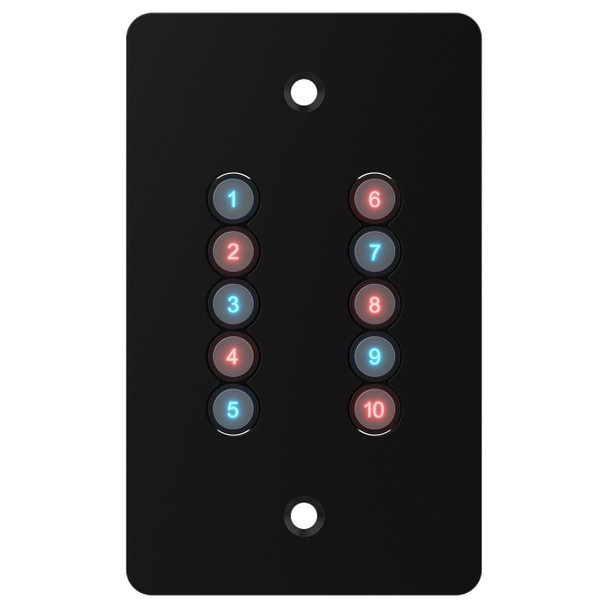

The 10Scene Wall Plate V2 features ten 10Scene trigger buttons, with dual color LED status indication.
Connect 10Scene wall plates directly to the MagicQ/QuickQ Racks and DINs or to the GeNetix Gateway, GN5 or GN10 Nodes, where it can then integrate with any MagicQ or QuickQ system for remote Scene activation.
Each 10Scene Wall Plate can be individually ID’d allowing up to 50 zones when connected to MagicQ Systems, 10 when connected to QuickQ Systems and 1 with GeNetix Systems.
FEATURES
- Uses standard Cat 5E cable for connectivity
- Connect direct to MagicQ/QuickQ Rack/DIN products or GeNetix Gateway, GN5 or GN10’s no power injectors required
- Easy to daisy chain - up to ten 10Scene wallplates per chain
- Long distance - one 10Scene at 1000 metres or five 10Scenes in a chain at 300m
- Fits single gang backbox
- Supplied in a dual pack
WHAT'S INCLUDED
- (2) Wall plates
- (2) 10Scene to RJ45 Adapters
- Quick Start Guide
SPECIFICATIONS
HARDWARE
- 10Scene Buttons: 10
- Dual Color Red/Blue Buttons: Yes
- Powered via 10Scene Protocol: Yes
- 10Scene Connector Type: 2 x RJ45 Sockets
- Max Number of 10Scene Wall Plates per Daisy
- Chain: 10
SOFTWARE
- Custom Wall Plate IDs: Yes
- Compatible with MagicQ / QuickQ Rack / DIN: Yes
- Compatible with GN5 / GN10 / GN10P / GN10R: Yes
- Compatible with GeNetix Gateway: Yes
WEIGHTS AND DIMENSIONS
- Width: 3.4 in. (86 mm)
- Depth: 1.2 in. (30 mm)
- Height: 3.4 in. (86 mm)
- Weight: 0.44 lb (0.2 kg)
