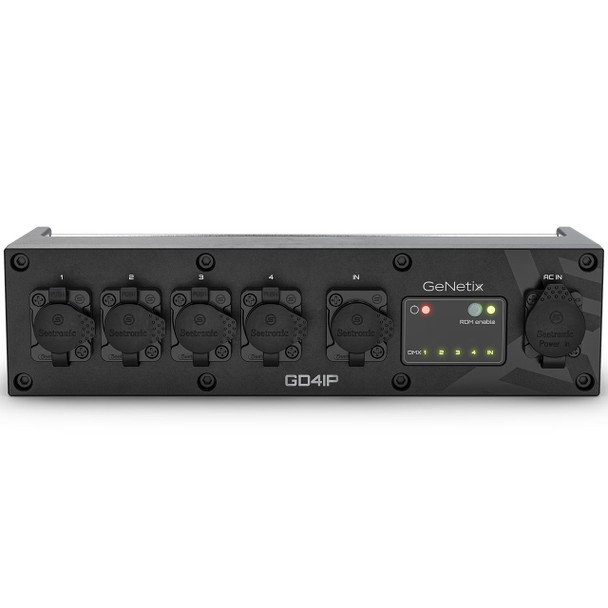

ChamSys GeNetix 4-port IP Rated DMX Splitter

GeNetix GD4IP is a compact IP65-rated 4-port DMX Splitter that comes with multiple rigging options for easily mounting in your rig. Featuring 1 DMX Input to 4 DMX Outputs and an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, this ruggedly built device comes with Seetronic IP65 connectors and a PowerCon True1 Mains Input connector.

FEATURES

• 4 Port RDM E1.20 Compliant DMX Splitter
• IP65 Rated
• PowerCon True1 Top Mains Input
• M12 Threaded Insert for Clamp Mounting
• Built in Rail for secondary Safety bond when rigged

WHAT'S INCLUDED

• GeNetix GD4IP 4-Port IP DMX Splitter: 1
• Neutrik powerCON TRUE1 Power Cable: 1

SPECIFICATIONS

HARDWARE

• 5 Pin DMX Output Ports: 4
• 5 Pin DMX Input Ports: 1
• RDM Enable/Disable Option: Yes
• Mains Input: PowerCon True1 Top
• IP65 Rated: Yes
• Port Status LEDs: Yes
• M12 Clamp Fixing: Yes
• Safety Bond Fixing Rail: Yes
• Max Power Consumption (mains): 7.0w

SOFTWARE

• RDM E1.20 Compliant: Yes

WEIGHTS AND DIMENSIONS

• Width: 10.81 in. (274 mm)
• Depth: 3.0 in. (76 mm)
• Height: 2.68 in. (68 mm)
• Weight: 3.09 lb (1.40 kg)
