Chamsys

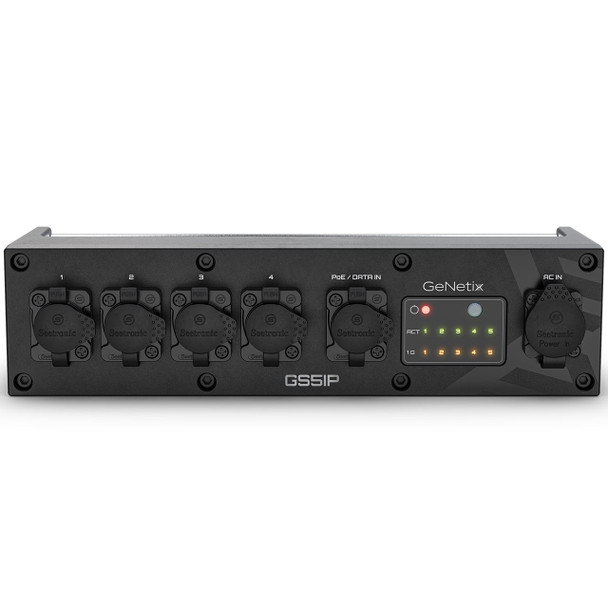

ChamSys GeNetix 5-Port IP Rated Unmanaged Switch
- UPC:
- 781462225520
- MPN:
- GENETIXGS5IP
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Drop Shipment:
- Not available for in-store pick up
Frequently bought together:
Description
GeNetix Switch 5IP is a five-port IP65-rated unmanaged Gigabit network switch that can be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This compact and rugged all-weather device comes with multiple rigging options for easily mounting in your rig. Port Status LEDs provide visual indication to know if ports are connected/active and if running at Gigabit speed.
FEATURES
- 5 port Unmanaged Gigabit Network Switch
- IP65 Rated
- Locking Ethernet Connectors
- Can be mains or PoE Powered
- PowerCon True1 Top Mains Input
- M12 Threaded Insert for Clamp Mounting
- Built in Rail for secondary Safety bond when rigged
WHAT'S INCLUDED
- GeNetix GS5IP 5-Port IP Switch
- Neutrik powerCON TRUE1 Power Cable
SPECIFICATIONS
HARDWARE
- Network Ports: 5
- Mains Input: PowerCon True1 Top
- Can be PoE Powered: Yes
- Port Status LEDs: Yes
- M12 Clamp Fixing: Yes
- Safety Bond Fixing Rail: Yes
- Max Power Consumption (mains): 30w
SOFTWARE
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
WEIGHTS AND DIMENSIONS
- Width: 10.81 in. (274 mm)
- Depth: 3.0 in. (76 mm)
- Height: 2.68 in. (68 mm)
- Weight: 3.09 lb (1.40 kg)
