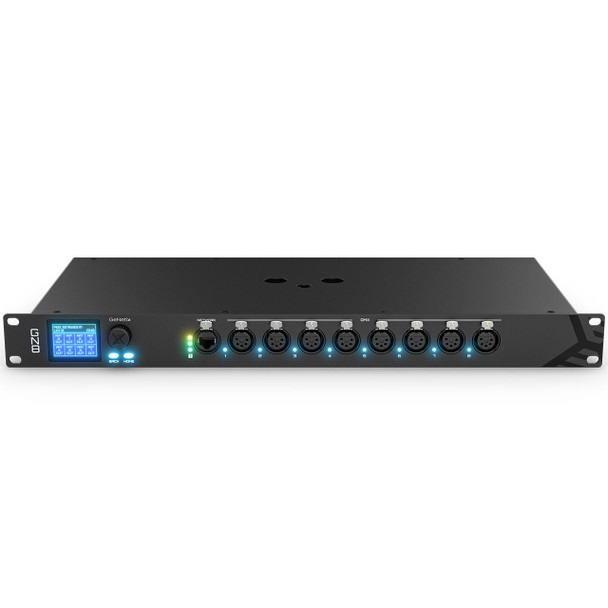

ChamSys GeNetix 8-Port Node DMX Connectors

GeNetix Node 8 is ideal for both installed and live applications that call for a straightforward Art-Net/sACN to DMX node solution.

This interface supports RDM, features configurable DMX timing, and can be remotely configured from ChamSys consoles via its in-built web server, or locally via the display on the unit. This versatile device is at home in many different environments whether truss-mounted in the rig via its M12 receiver or rack mounted via its rack ears.

FEATURES

• 8 RDM DMX Ports supporting DMX Output
• Webserver for remote configuration
• In-built display and encoder for local configuration
• Configurable DMX Timing
• Does not unlock 'demo mode' on MagicQ PC Systems

WHAT'S INCLUDED

• GeNetix GN8 8-Port Node DMX Connectors: 1
• powerCON TRUE1 Power Cable: 1
• Quick Start Guide: 1

SPECIFICATIONS

HARDWARE

• RDM Direct DMX Ports: 8
• Network Ports: 1
• Kensington Security Lock Fixing: Yes
• Power Input: PowerCON TRUE1 110 to 240 VAC
• PowerCon TRUE1 Link Out: Yes
• Mains Powered: Yes

SOFTWARE

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• Unlock’s ‘demo mode’ MagicQ PC Systems: No

WEIGHTS AND DIMENSIONS

• Width: 18.9 in. (480 mm)
• Depth: 8.59 in. (218 mm)
• Height: 1.75 in. (44.4 mm)
• Weight: 5.95 lb (2.70 kg)
