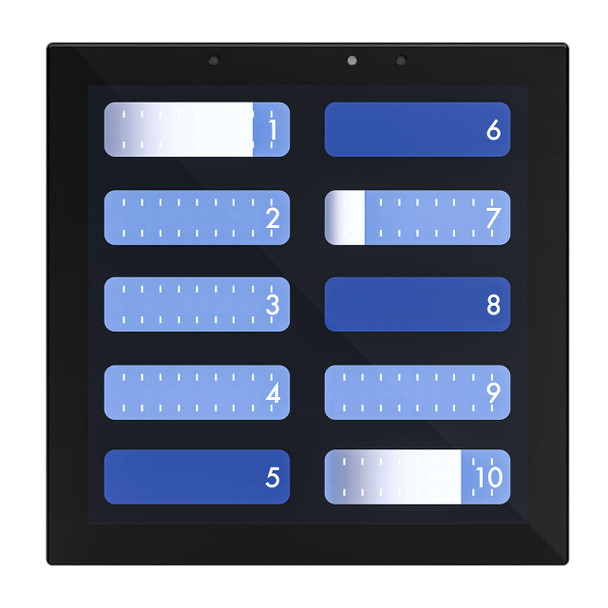

ChamSys GeNetix TouchScene Mini

GeNetix TouchScene MINI seamlessly integrates with MagicQ or QuickQ systems and GeNetix nodes for remote Scene activation.

When connected to GeNetix Nodes, TouchScenes can be used to toggle on/off Scenes stored on GeNetix Nodes. When TouchScenes are used with MagicQ or QuickQ controllers, additional Scene level control is available.

Whether pairing with GeNetix Nodes or ChamSys controllers, TouchScene includes inbuilt layouts that allow its 4" touchscreen to become a surface suitable for any installation. Along with the practical advantages and aesthetic appeal of graphic display customization, GeNetix TouchScene MINI is PoE-powered, allowing integrators to easily add remote control to installations using standard Ethernet cable for connectivity.

FEATURES

• 4" Touch Screen
• Connects to either MagicQ Systems, QuickQ Consoles or GeNetix Nodes
• PoE Powered
• Features Selectable In-built Layouts
• Customizable Layouts when connected to a MagicQ consoles
• Supports Pin Locking when connected to MagicQ or QuickQ consoles
• Supports Custom Screensavers

WHAT'S INCLUDED

• GeNetix TouchScene MINI
• TouchScene MINI Wall Plate Mounting Bracket
• Quick Start Guide

SPECIFICATIONS

HARDWARE

• Screen Size: 4"
• Screen Resolution: 480 x 480
• 48v PoE Powered: Yes
• Unlocks MagicQ PC Systems: No*
• Fits US Dual Gang Backbox: Yes, with supplied adapter plate

* NOTE when used with MagicQ PC Systems, MagicQ must be fully unlocked in order for the TouchScene to work with the PC System.

SOFTWARE

• Connects to MagicQ Consoles: Yes
• Connects to QuickQ Consoles: Yes
• Connects to GeNetix Nodes: Yes
• Connects to MagicQ PC Systems: Yes – Required System to be Full Unlocked
• Number of Zones when used with MagicQ Systems: 50
• Number of Zones when used with QuickQ Consoles: 10
• PIN Locking: Yes – MagicQ/QuickQ Only
• Customizable Screen Saver Images: Yes
• Inbuilt UI Layouts: Yes
• Customizable UI Layout: Yes – MagicQ / QuickQ Only

WEIGHTS AND DIMENSIONS

• Width: 3.34 in. (85 mm)
• Depth (Panel): 0.43 in. (11 mm)
• Depth with rear connector: 1.38 in. (35 mm)
• Height: 4.90 in. (124.59 mm)
• Weight: 0.22 lb (0.1 kg)
