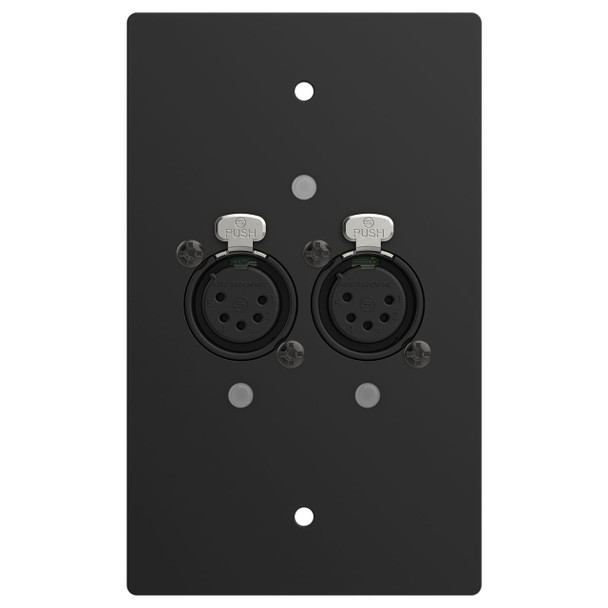

ChamSys GeNetix Wall Mount 2-Port Node Female DMX

GeNetix Wall Mount Node 2 is a two-port wall mount PoE powered node, available to fit into standard single gang US back boxes. Available with female physical RDM Direct DMX ports, supports both DMX input or output. GeNetix Wall Mount Node 2 is ideal for any fixed installation, supporting Art-Net and sACN and configurable from ChamSys consoles, via its in-built web server or over Art-Net.

FEATURES

• 2 RDM DMX Ports supporting Input and Output
• Available with Female DMX Ports
• Supports Art-Net & sACN
• Webserver for remote configuration
• PoE Powered
• Supplied with separate interchangeable Black or White faceplates
• Fits US Standard Single Gang Back Box fit
• Does not unlock 'demo mode' on MagicQ PC Systems

WHAT'S INCLUDED

• GeNetix 2-Port Wall Mount Node DMX-Out (female)
• Black and White Face Plates

SPECIFICATIONS

HARDWARE

• RDM Direct DMX Ports: 2
• Network Ports: 1 (punchdown connector)
• PoE Powered: Yes
• Supplied with interchangeable Black or White faceplates

SOFTWARE

• Art-Net/sACN: Yes
• ChamNet Support: Yes
• Configurable DMX Timings: Yes
• Web Server: Yes
• DMX Redundancy Support: Yes
• Unlock's 'demo mode' MagicQ PC Systems: No

WEIGHTS AND DIMENSIONS

• Width: 2.76 in. (70 mm)
• Depth: 1.48 in. (37.5 mm)
• Height: 4.53 in. (115 mm)
• Weight: 0.33 lb (0.15 kg)
