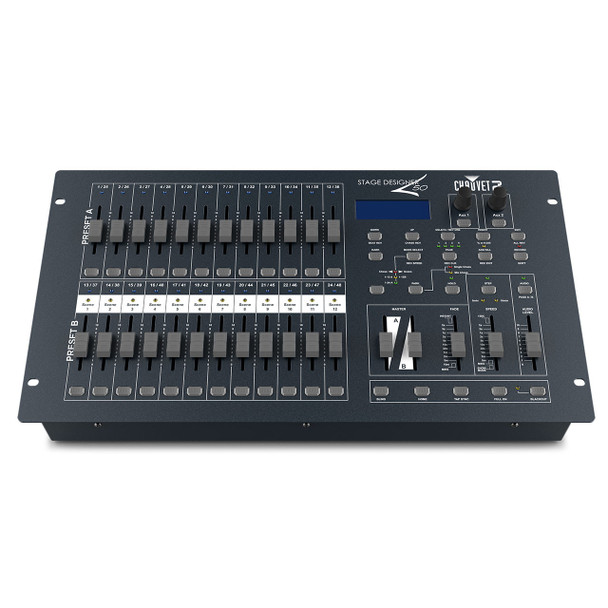

Chauvet DJ Stage Designer 50, B-Stock

Used – Very Good / Manufacturer B-Stock: The item has been well-cared-for and is still in very good working condition. May show signs of wear, i.e. small scratches or cosmetic errors.

** This unit is in the original manufacturer packaging. We have not opened the box to take photos of this particular unit.

The Chauvet DJ Stage Designer 50 takes the size of a 24-channel dimming console and the functionality of a 48-channel console and combines the two into one powerful dimming unit. The Stage Designer 50 has up to 8 pages with 12 scenes each and 96,000 programmable steps. The console allows the user to re-assign channels as needed and allows for MIDI input.

FEATURES

• Theater-style, DMX controller designed to control LED Par fixtures as well as relay and dimmer packs
• Saves desk space by squeezing 48 channels into a 24-channel console
• Achieve smooth transitioning between live stage looks with built-in, two-scene cross faders
• Increase programming and playback versatility with two programmable auxiliaries
• Simplify programming by using DMX channel patching to reassign channels
• Increase flexibility with built-in MIDI support for remote dimming and scene triggering
• Coordinate your light shows to music using the direct audio input connector or built-in microphone
• Ability to stack scenes for simultaneous or sequential playback

WHAT'S INCLUDED

• Power cord
• User manual
• Warranty card
• External power supply

SPECIFICATIONS

• DMX Channels: 48
• DMX Connectors: 3- and 5-pin XLR
• Input Voltage: 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz)
• Weight: 9.9 lb (4.5 kg)
• Size: 19 x 10.5 x 3.5 in (483 x 267 x 89 mm)
• Approvals: CE
• Rackmount: 6U
