Chauvet Professional

Chauvet Professional Maverick Force X Profile

Write a Review
MPN:
MAVERICKFORCEXPROFILE
Availability:
This item is shipped directly from the vendor and is subject to their availability.
Type:
Profile with Shutters
Source:
LED
IP-Rating:
IP20

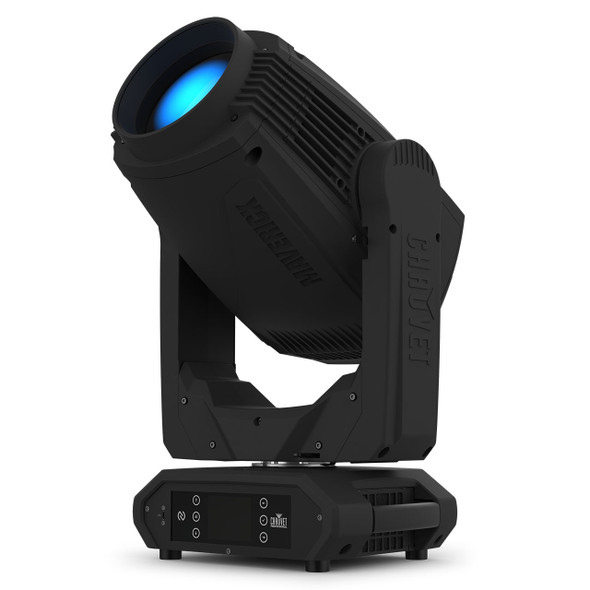

  • Chauvet Maverick Force X Profile right

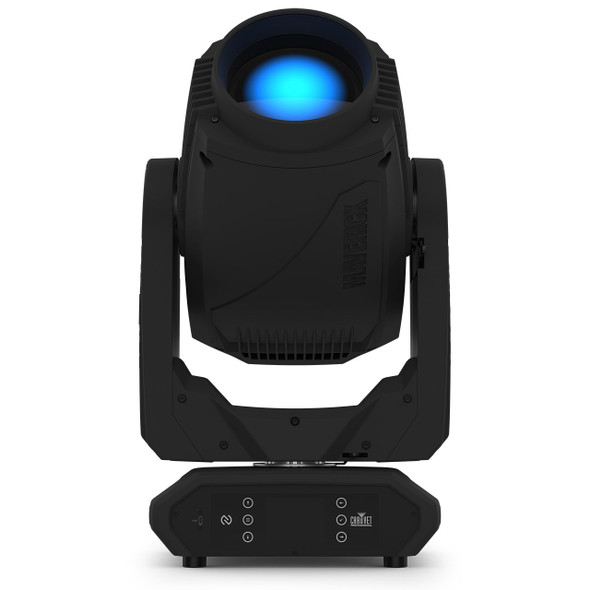

  • Chauvet Maverick Force X Profile front
  • Chauvet Maverick Force X Profile left
  • Chauvet Maverick Force X Profile back
$5,811.50
Frequently bought together:

Description

With superb dimming performance, an expansive 18:1 zoom, and a full armory of features, the Chauvet Professional Maverick Force X Profile is a compact LED moving profile ready for a wide range of short and long throw applications. This fast lightweight powerhouse combines the latest Maverick series technical advancements to achieve 18,963 lumens of output in a design that maintains a flat field of focus all the way from its narrow 3.5° beam to a broad 57.3° spot. Color calibration and gobo selection comes matched to other Force fixtures in the rig, along with an advanced 4-blade shutter frame system and a wheelhouse that includes a variable CMY color mixing system renowned for its real reds, color wheel with CRI and CTB filters, static and rotating gobo wheels, five-facet prism, iris, and frost. Take control with DMX, RDM, sACN, Art-Net, or CRMX.

FEATURES

  • Fully featured, compact and lightweight 520 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
  • 16-bit dimming of master dimmer for smooth control of fades
  • 65,000 PWM for use with the fastest frame cameras, but still maintains fantastic dimming
  • Variable CMY color mixing system to create a wide pallet of colors
  • DMX, CRMX, sACN, and Art-Net for full flexibility of control options
  • RDM-enabled for remote addressing and trouble shooting
  • 3.5° to 57.3° zoom range for variable beam sizes
  • Iris, 5-facet prism, and frost for beam control
  • 4 blade framing shutters with dual axis movement, full wipe, and 120-degree total module rotation
  • True-1 compatible power input
  • Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
  • USB slot for software uploads
  • Battery backup display with auto-rotate depending on fixture orientation
  • Failsafe Ethernet connectivity allows data to pass even if fixture power is lost
  • NFC for quick/easy fixture setup in the shop or in the field

WHAT'S INCLUDED

  • Maverick Force X Profile
  • Seetronic Powerkon power cord
  • Omega brackets with mounting hardware

SPECIFICATIONS

OPTICAL

  • Light Source: 1 LEDs (CW) 520 W, (4.2A), 6966 K, 50,000 hours life expectancy.
  • Color Temperature (at full): 6966 K
  • Front lens diameters: 145 mm
  • CRI: 72.2
  • CRI with CRI filter: 90
  • Beam Angle: 3.4° to 52.2°
  • Field Angle: 3.7° to 55.3°
  • Cutoff Angle: 3.8° to 57.3°
  • Zoom Range: 3.5° to 57.3°
  • Lumens - Output: 18,963
  • Illuminance (3.4°) : 104,429 lux @ 5 m
  • Illuminance (57.3°) : 1,219 lux @ 5 m
  • Selectable PWM : 600Hz, 1500Hz, 2000Hz 65000Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
  • Colors: 7 (including CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
  • Colors: CMY wheels
  • Color Macros: CMY macros
  • Gobos (1): 9 + open (9 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 23.9 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, motorized, rotating
  • Strobe Rate: 0 to 25 Hz
  • Move-in-Black: Yes
  • Dim Curves: 5

CONSTRUCTION / PHYSICAL

  • Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
  • Weight: 50 lbs (23.1 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Steel

CONNECTIONS

  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, Art-Net, sACN, CRMX, NFC
  • DMX Channels: 31 or 47
  • Art-Net Channels: 31 or 47
  • Modes/Personalities: 2 personalities (31, 47)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V;4 units @ 230 V
  • Power and Current: 595 W, 5.98 A @ 120 V, 60 Hz
  • Power and Current: 576 W, 2.82 A @ 208 V, 60 Hz
  • Power and Current: 580 W, 2.58 A @ 230 V, 50 Hz

BATTERY

  • Battery type: Lithium Ion (display screen backup)
  • Rechargeable: Yes
  • Battery Charge Time: 5 hours
  • Battery Life: 1 hours
  • Battery Power: 3.7V, 500 mAh

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET, FCC, FCC, UKCA
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

OPTIONAL ACCESSORIES

  • Clamps: CTC-50HC, CTC-50G, CTC-50CBLK, CTC 50HCN, CTC-50HCNBLK
  • RIGLINK powerKON cables
  • RIGLINK TR1 cables
  • DMX Cables
  • Flight Cases
  • CP Rack
  • PowerStream 4 IP
