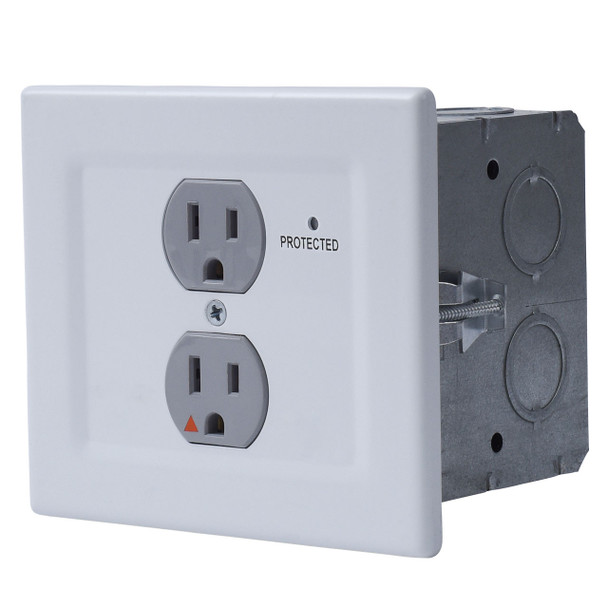

Chief EGX-SF2 Power Conditioned Wall Outlet 2-gang

New – Open Box

A high-performance, dual gang housing, isolated ground, dual receptacle outlet featuring non-sacrificial multi-stage filtration and surge protection system. Protects equipment from disruptive high frequency noise and damage caused by power disturbances.

FEATURES

• Non-volatile spike protection with LED power indicator
• Non-sacrificial multi-stage technology
• Non-current limiting design passes full power on a regular circuit; redundant protection circuits
• Improves the reliability and functionality of connected equipment by safeguarding equipment from high energy transients, lightning strikes and electronic noise events that can cause gear degradation and downtime
• Line filter reduces common and differential mode noise by up to 40 dB
• Rated for 125V~, 60Hz, 15 A
• 1875 watt maximum
• Ferrite toroid based EMI Filter
• Withstand rating of 240 VAC continuous without damage or loss of protection
• Housing Dimensions (HxWxD): 3.95 x 4.33 x 3.79” (100 x 110 x 96 mm)

POWER REQUIREMENTS

• N-G; 800V L-G Maximum Continuous Operating Voltage (MCOV): 240V Nominal Discharge Current (In): 3kA Short Circuit Current Rating (SCCR): 5kA Ambient Temperature Max: 40 degrees C
• Power Consumption: >0.5 watt Type 3 Surge Protective Device (SPD) Voltage Protection Rating (VPR): 600V L-N

SPECIFICATIONS

• Accessory Type: Power
• Application: Wall
• Solution Type: Dual-gang housing
• Special Features: Surge and Filtering
• Depth: 4.04 in. (10.3 cm)
• Height: 4.5 in. (11.4 cm)
• Width: 5.25 in (13.3 cm)
• Overall Dimensions: 4.5 x 5.25 x 4.04 in. (114 x 133 x 103 mm)
• Color: White plate, Grey outlets
• Shipping Weight: 3.75 lbs (1.7 kg)
• TAA Compliant: No
• Certifications: UL Listed
