cmd_key EOS v3

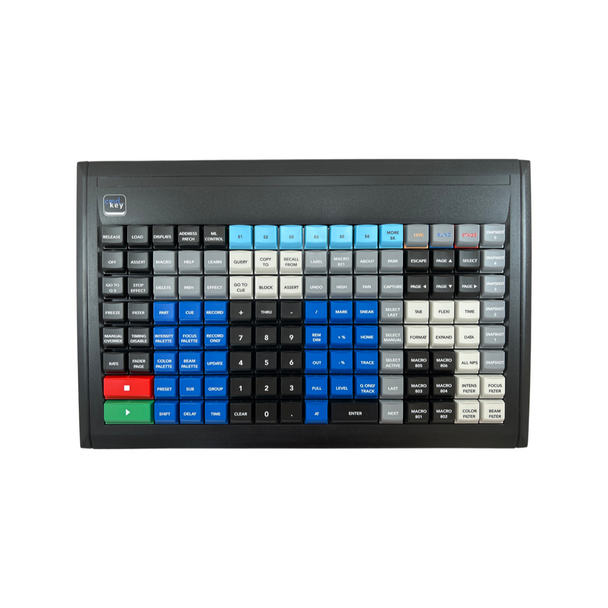

The cmd_key from High Output is a 125 key keyboard that is programmed and ready to take with you on your next ETC EOS Family programming gig. With a near identical layout to current EOS Family Consoles from ETC, the cmd_key allows users to easily switch from full-sized desks to portable or secondary ones, without having to re-learn the mapping of the keys. With “silent” Cherry MX Black keys that are mounted on a steel frame in a small form factor, the cmd_key give users a tool for when they do not have the space or the need for a full-sized console but still want to maintain the professionalism and productivity of having an EOS desk. The keyboard utilizes a splash of color to allow users to quickly determine which section they are looking for when muscle memory fails. In addition to a near complete EOS layout, the cmd_key has six pre-defined macro keys, as well as five snapshot keys and five categorical filters. With a built in two port USB hub, you can safely store and use your ETCnomad dongle as well as connect a mouse or other peripherals.

FEATURES

• 125 pre-mapped keys for ETC EOS control consoles
• Familiar keyboard layout to the current ETC EOS keyboard
• Industrial grade Cherry MX Black key switches result in a fluid and silent programming experience
• Sturdy construction built around a steel key frame for reliability and durability
• Color-coded zones for easy navigation
• Dedicated macro and snapshot keys for quick access
• Built-In 2 Port USB Hub for Mouse and ETCnomad dongle(not included)
• Pad-printed Key legends on keycap covers for easy reading in low light
• Updatable: cmd_key can be updated as ETCnomad and EOS evolve over time.
• 2 year Limited Warranty
• Designed for EOS 3.x
• New STAGE key for Staging Mode (3.x)

WHAT'S IN THE BOX

• cmd_key Keyboard
• USB Cable

PHYSICAL

• Keyboard Dimensions: 13 x 9 x 2 inches
• Keyboard Weight: 3 lbs
• Keyboard Voltage: 5v USB
• Shipping Dimensions: 17.25 x 9.25 x 2.25 inches
• Shipping Weight: 4 lbs

REQUIREMENTS

• Any EOS family console, MAC or PC running ETCnomad software version 2.9.x or greater.
  Windows PC required for cmd_key Updater Software (for future firmware updates)
• Staging Mode only works with EOS 3.x.

NOTE

• cmd_key uses the "z" key for EOS Shift. In your ETCnomad Shell Settings, you will need to un-check the box for "Use Shift for EOS Shift" for proper operation.
