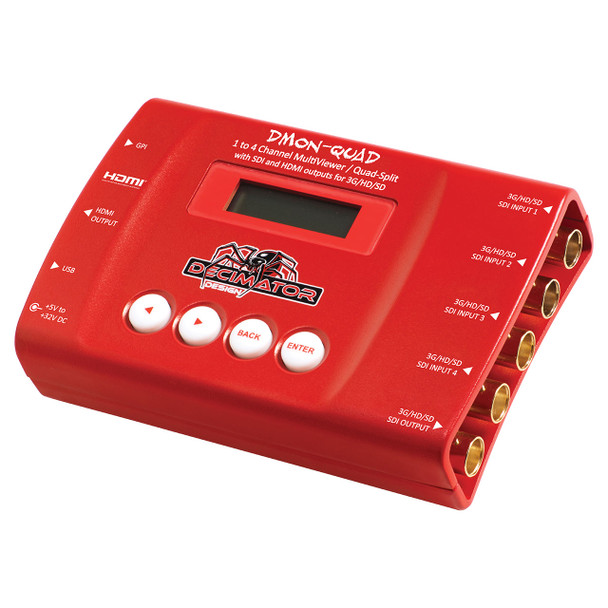

Decimator DMON-QUAD 3G/HD/SD-SDI Quad Split Multi-Viewer with SDI + HDMI Outputs

The Decimator DMON-QUAD is a 4 x (3G/HD/SD)-SDI to HDMI Converter with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters.

The DMON-QUAD is a truly portable converter, that incorporates our easy to use LCD and button control system. This gives you easy access to most of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

FEATURES

• Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
• Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
• Custom Layouts with various standard layouts
• 16 Character UMD overlay per window with individual enables, custom positioning and size
• 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
• Horizontal and/or Vertical image flipping per window
• Audio ID overlay
• Tallies can be applied to either Tally Boxes (Default) or Border
• Tally boxes allows for up to 4 Tallies per window
• Fast switching between inputs using Full-Screen scaling
• Selectable output format in both Full-Screen Multi-Viewer mode
• Low latency buffering for each input allowing non-synchronous inputs
• Linked (3G/HD/SD)-SDI and HDMI outputs
• 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
• Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
• Variable aspect ratios per window
• In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

WHAT'S INCLUDED

• DMON-QUAD unit
• GPI on RJ-45 connector for Tallies and Remote Switching
• RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
• USB port for control and firmware updates
• Metal Thread Locking DC Power Socket
• Power Supply, HDMI Cable and USB Cables

SPECIFICATIONS

SDI INPUT & OUTPUT FORMATS

• 3G:SMPTE 424M@2.97 and 2.967Gb/s
  • 1080p@60/59.94/50Hz
• HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
  • 1080i@60/59.94/50Hz
  • 1080p/psf@30/29.97/25/24/23.98Hz
  • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
• SD:SMPTE 259M@270Mb/s
  • 625i50 (PAL)
  • 525i59.94 (NTSC)

HDMI OUTPUT FORMATS

• 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
• 1080i@60/59.94/50Hz
• 720p@60/59.94/50/30/29.97/25
• 625i50 (PAL)
• 525i59.94 (NTSC)

INPUTS

• 4 x (3G/HD/SD)-SDI
• USB for control and updates
• GPI on RJ-45

OUTPUTS

• 1 x (3G/HD/SD)-SDI
• HDMI Type A

LCD / BUTTON MENU OPTIONS

• HDMI output type
• Output Select
• Multi-Viewer Output Format
• Multi-Viewer Number of Windows
• Multi-Viewer Layout
• Multi-Viewer Audio Source
• Multi-Viewer Reference
• Full Screen is Scaled
• Input Routing
• GPI mode
• Setup

POWER

• +5V to +32V DC
• Positive Centre Pin

DIMENSIONS

• 3.1 x 4.8 x 1.2 in.(79.5x 123 x 29.5mm)
