Elation Professional

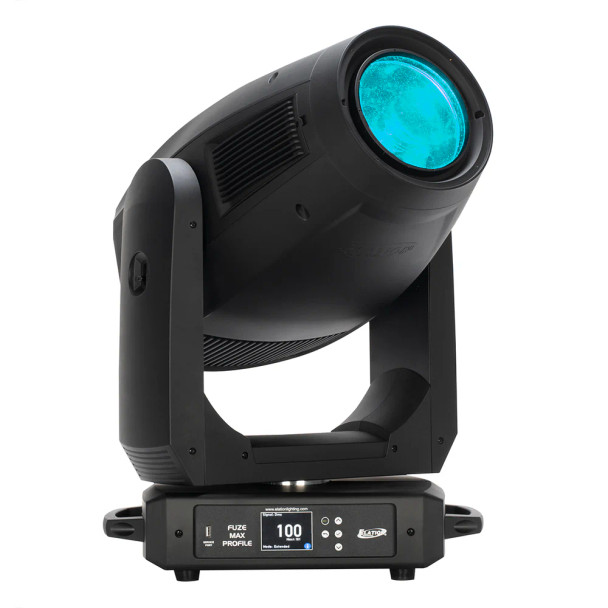

Elation FUZE Max Profile
- UPC:
- 810008263020
- MPN:
- FUZ546
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Wash
- Features:
- Shutters
- Source:
- LED
- IP-Rating:
- IP20
Description
The Elation FUZE MAX PROFILE™ is a full spectrum automated LED framing fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes an 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.
The FUZE MAX PROFILE is designed for any application where fully automated framing fixture with outstanding and compelling color range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, dual frost, prism and iris round out its comprehensive feature set in this quiet and extremely powerful automated framing fixture.
FEATURES
- Full Spectrum 800W RGBMA LED Engine
- Precise dynamic whites from 2400 - 8500K
- Instant color changes, Natural color transitions
- Rich and intense primary colors
- Rotating and Fixed Gobos plus Animation Wheel
- Full Blackout Framing System
- Iris, Prism, and Dual Frost
- Wide Zoom Range from 7° to 53°
- Large 140mm front aperture
SPECIFICATIONS
SOURCE
- 4800W 6,500K RGBMA LED Engine
- 30,000 Hour Average LED Life**
- *Test lab Conditions. May vary depending on several factors.
PHOTOMETRIC DATA
- 21,000 Total Lumen Fixture Output
- CRI 92
- Zoom Range 7° - 53°
- Beam Angle 6.6° - 50.3°
- Field Angle 7.8° - 55°
EFFECTS
- Motorized Zoom
- 4 Rotating Full Blackout Framing Blades, +/- 60 Index
- Dual Variable Frost Filter (Medium/ Wash)
- 4 Facet Round, 4 Facet Linear Prism
- Motorized Iris
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Pan Angle: 540° / 630°
- Tilt Angle: 250°
COLOR
- RGBMA Color Array
- CMY Emulation
- Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book
GOBOS
- 1x 6 Rotating / Indexing Interchangeable Glass Gobos
- 1x 7 Fixed Interchangeable Glass Gobos
- Animation Wheel
CONTROL / CONNECTIONS
- 4 DMX Channel Modes (RGBMA 40/61) (CMY 38/57)
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- 16 Bit Resolution Adjustable Movement
- 5-pin DMX In/Out
- IP65 Locking Power In
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 18.19” (462mm)
- Width: 21.26" (540mm)
- Width with Snoot: 23.2" (590mm)
- Vertical Height: 28.3" (719mm)
- Vertical Height with Snoot: 30.4" (771mm)
- Center Spacing (no snoot): 26.1in (662mm)
- Center Spacing (with snoot): 29.8in (757mm)
- Weight: 76.3 lbs. (34.6kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- Max Power Consumption 1126W
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 3839.66
APPROVALS / RATINGS
- CE, cETLus, IP20, FCC
