Elation Professional

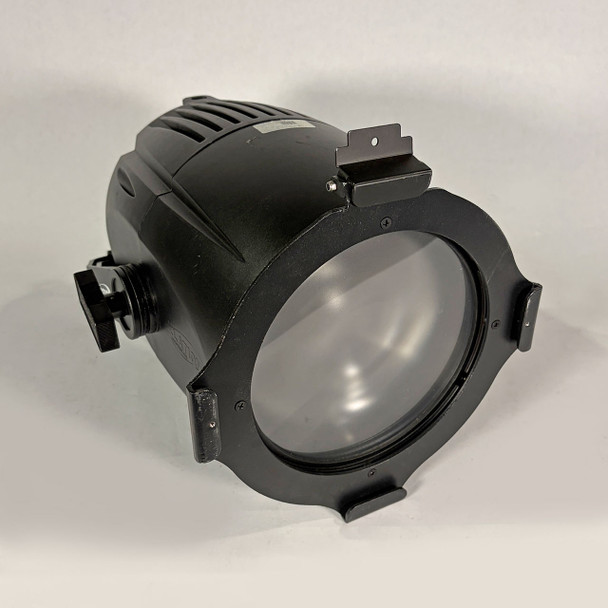

Elation FUZE PAR Z175 with Zoom
- UPC:
- 837874002423
- MPN:
- FUZ059
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Par
- Source:
- LED
Description
The Elation FUZE PAR Z175™ is a single source par with zoom. Featuring a 175W RGBW COB LED engine, 8° to 35° motorized zoom, an advanced cooling system, smooth RGBW color mixing, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable di mming curve modes, flicker free operation for TV and FILM, 3/5-pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, integrated dual rigging yokes, and a multi-voltage universal auto switching power supply (100-240v). Gel frame and barn doors included.
FEATURES
- Single Source Par
- 175W RGBW COB LED Engine
- 8° to 35° Motorized Zoom
- Advanced Cooling System
- Smooth RGBW Color Mixing
- Variable 16-Bit Di mming Curve Modes
- Flicker Free Operation for TV and FILM
WHAT'S INCLUDED
- Gel Frame
- Barn Doors
SPECIFICATIONS
SOURCE
- 175W RGBW COB LED
- 50,000 Hour Average LED Life*
- *Test lab Conditions. May vary depending on several factors.
PHOTOMETRIC DATA
- 15,026 LUX 1396 FC @6.6 ft (2m) (Full ON 8°)
- 3,481 LUX 323 FC @6.6 ft (2m) (Full ON 35°)
EFFECTS
- 8° - 35° Motorized Zoom
- 64 Color Presets and Color Macro Programs
- Electronic Strobe
- 16-bit Variable Di mming Curve Modes
COLOR
- RGBW
CONTROL / CONNECTIONS
- 12 DMX Channel Modes (14 Total Channels)
- 4 Button Control Panel and LCD Menu Display
- RDM (Remote Device Management)
- 5-pin DMX and Locking Power Cable In/Out
- With Wired Digital Co mmunication Network
SIZE / WEIGHT
- Length: 18.2" (463 mm)
- Width: 16.2" (411 mm)
- Vertical Height: 17.0" (431 mm)
- Weight: 20.0 lbs. (9.07 kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 200W Max Power Consumption
- Multiple Unit Power Linking
- 5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
- CE | cETLus | IP30
