ENTTEC 70303 Open DMX USB - Basic DMX512 to USB 2.0 Interface

Write a Review
MPN:
70303
Availability:
Usually ships within 2 business days when in stock.

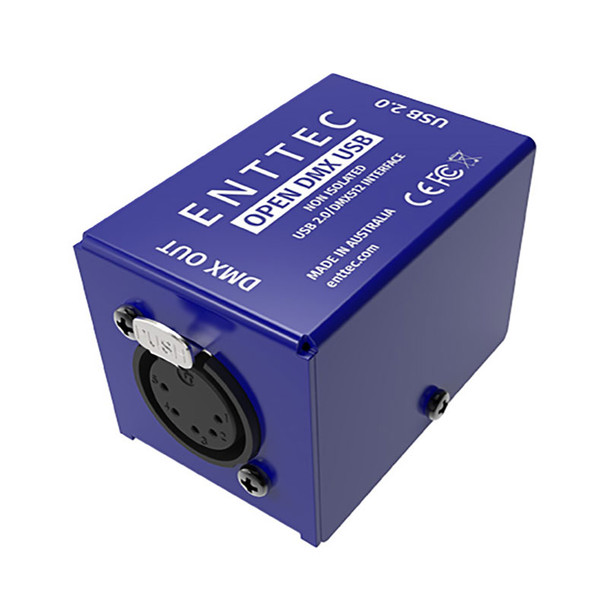

  • ENTTEC 70303 Open DMX USB - DMX end
  • ENTTEC 70303 Open DMX USB - USB end
  • ENTTEC 70303 Open DMX USB combined top and end views
$67.00

Description

The Open DMX USB features a robust USB type-B port to connect to your computer and a single 5-pin DMX output to connect to your DMX lighting. With its folded metal construction you can be sure that it’s at home on a workshop test bench, long-term installation or ready to tour on the road.

This is the perfect device for those getting started with DMX lighting. Enjoy reliable, no-fuss control of 512 channels, and full compatibility with a wide range of 3rd party software.

The widely compatible FTDI driver the Open DMX USB uses to communicate with your computer is compatible Windows, macOS and Linux operating systems, giving a wide scope for flexibility.

This device is an amazing little package – but remember that it doesn’t do everything. If you're looking for a device with opto-isolation, configurable frame rate and frame buffer – or are planning to use EMU (ENTTEC's audio-lighting software) – be sure to check out Enttec's DMX USB Pro and DMX USB Pro Mk2 devices.

Compatible with a reduced set of programs compared to the DMX USB Pro Mk2 it will still allow control of 512 channels.

USB 2.0 input and single DMX512 output (non-isolated), RDM is not supported on this device

FEATURES

  • Compatible with a wide range of 3rd party software
  • Designed to be powered from computer over USB
  • One female 5 Pin XLR DMX port (output only)
  • Output up to 512 channels (software permitting)
  • Able to integrate into custom projects with the use of the OPEN DMX USB API

Recommended Apps

  • FreeStyler
  • Q Light Controller (Win & OSX & Linux)
  • QLC + (Win & OSX & Linux)
  • DMXControl (Windows)

Note: to use the ENTTEC EMU you must be using a DMX USB Pro or a DMX USB Pro Mk2. The Open DMX USB is not compatible with EMU.

SPECIFICATIONS

  • Connectors A: (1) DMX Output (Female XLR5)
  • Connectors B: (1) USB 2.0 Type-B
  • IP rating: IP20
  • LED indicators: No
  • Supported protocols: USITT DMX512-A
  • Standalone playback: No
  • MIDI: No
  • Maximum output channels: 1 universe (512ch)1
  • Max. output refresh rate: 40FPS2
  • Configuration software: No
  • Firmware updates:No
  • Input voltage: 5V DC (via USB)
  • Input current: 300mA
  • Power draw: 1.5W
  • Environmental Operating temperature: 0°-50°C (32°-122°F)
  • Environmental Operating humidity: 5- 95% (non-condensing)
  • Body material: Folded Aluminium
  • Mounting options: N/A
  • Unit dimensions: 3.0 x 1.57 x 1.57 in. (77 x 40 x 40 mm)
  • Unit weight: 0.13 lbs (61 g)
  • Shipping dimensions: 5 x 3 x 2.75 in. (125 x 75 x 70 mm)
  • Shipping weight: 0.35 lbs (0.16 kg)
  • Warranty 3-year return to base manufacturer warranty
