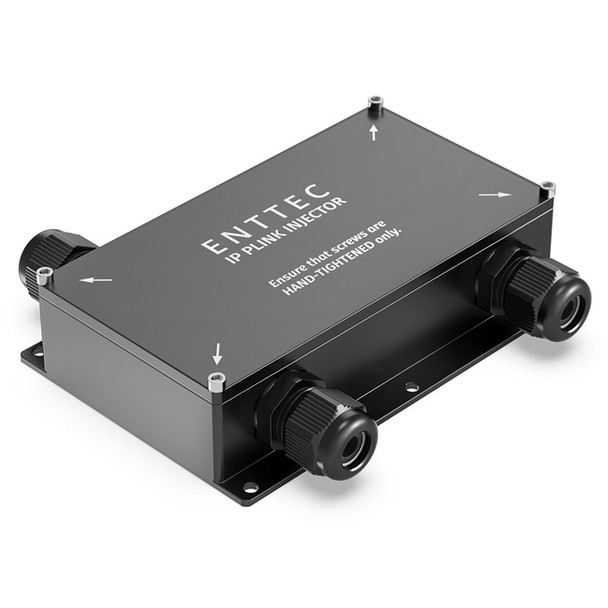

Enttec 73924 IP Plink Injector

The smart way to connect your LED pixel lights outdoors

The IP PLink Injector is a waterproof pixel data injector, engineered to work as part of an ENTTEC Pixelator Series setup making it fast, easy and affordable for you to control LED pixel strips or SPI LED pixel dots over long distances outdoors.

With no local configuration needed, it’s capable of receiving up to 2 Universes of PLink data from an ENTTEC Pixelator Series controller and converting it to SPI data used for auto-addressing pixel LEDs. Inside the housing, high current rising clamp connectors and an RJ45 port make connection simple.

The IP PLink can be powered from the same supply that feeds your LED dots with either 5V or 12-24V operating voltage (selectable with an internal cable jumper).

The flexibility of the Pixelator system combined with the IP PLink’s robust, anodized aluminium body, makes it fast to install and easy to use – a scalable system perfect for large outdoor projects.

FEATURES

• Each Plink port can drive up to 340 RGB individual pixels (2 DMX universe).
• Designed for use with Pixelator system.
• External DC power supply.
• Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable.
  • NOTE: Only use CAT5/6 Straight-through cables, do not use crossover cables
• Easy wiring using Cat5/Cat5e/Cat6 standard connections.
• Machined 6061 aluminium enclosure – light weight, rugged, impact resistant, long lasting, corrosion resistant, UV resistant.
• Premium nylon cable glands for installation flexibility.
• Breath seal (automatic pressure equalization, manages condensation to avoid electronic failures).
• IP66 enclosure (powerful water jets, high pressure washdown resistant).
• Adjustable voltage jumper position for 5V, 12V24V settings.
