ETC

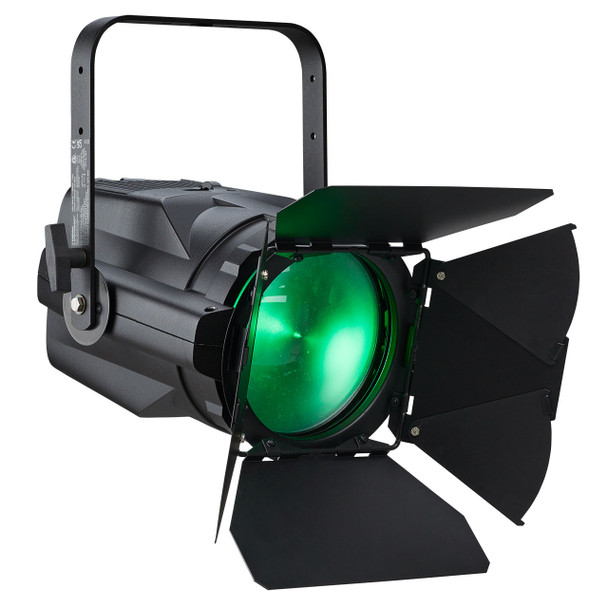

ETC ColorSource Fresnel V MAX LED, Black
- MPN:
- 7417A1012
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Type:
- Par
- Source:
- LED
- IP-Rating:
- IP20
Description
An LED luminaire crafted by lighting experts with a proven history of quality fixtures, the ETC ColorSource Fresnel V MAX doubles the output of the existing ColorSource Fresnel V but still brings a richness of color and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Fresnel V MAX provides soft pastels and bold saturated colors from a single fixture. Control the motorized 13°–44° zoom using DMX or manually from the rear of the fixture. ColorSource Fresnel V MAX also features wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, making it the ultimate in affordable wash light technology.
FEATURES
- Five-color array (red, green, blue, indigo, and lime)
- Motorized 13–44 degree zoom with DMX and local control
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
WHAT'S INCLUDED
- Hanging yoke
- Power cable with connector of choice
SPECIFICATIONS
SOURCE
- LED details: 60 Lumileds LUXEON® C LEDs
- Max lumens: 10,023
- Lumens per watt: 48
- L70 rating (hours to 70% output): 54,000 hours*
COLOR
- Colors used: red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: 13-44°
- Aperture size: 7.5 in (190 mm)
- Camera flicker control/Hz range: 5 kHz (default) 25 kHz (via RDM)
CONTROL
- Input method: 5-pin XLR connector, Multiverse wireless, NFC
- Protocols: DMX512, RDM, City Theatrical Multiverse, NFC
- Modes (footprint): 6 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- 15-bit virtual dimming engine
WIRELESS
- Band: 2.400–2.480 GHz
- Range: 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers
- DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
ELECTRICAL
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: AC via powerCON TRUE1 TOP power in and thru
- Inrush (First half-cycle): 120 V 36 A, 240 V 57 A
- Fixtures per circuit : 3 (link up to 4 via power thru connector)
- Wattage typical: 120 V 208 W, 240 V 205 W
- Current draw: 120 V 1.75 A, 240 V 0.95 A
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (Yes)
- Droop compensation: Yes
- dB range: tbd
- BTUs/hour: 709
PHYSICAL
- Materials: Cast and extruded aluminum
- Exterior housing color: Black
- Mounting options: Yoke
- IP rating: IP20
- Weight: 13.75 lb (6.24 kg)
- Height: 13.36 in. (339 mm)
- Width: 12.62 in. (321 mm)
- Depth: 12.26 in. (311 mm)
INCLUDED ITEMS
- Hanging yoke
- Power cable with connector of choice
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- cETLus Listed
- Conforms to UL 1598 & 924
- Certified to CSA C22.2 No. 250 & 141
- CE & UKCA compliant
