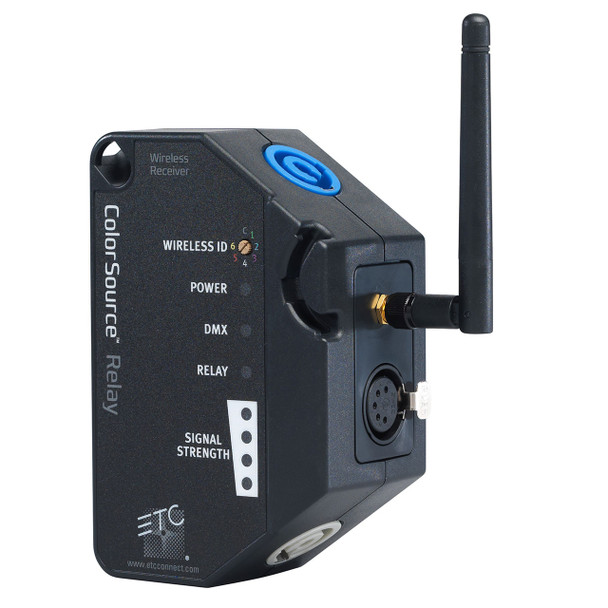

ETC ColorSource Relay with Multiverse Wireless Receiver

The ETC ColorSource Relay combines power sequencing and data distribution in a portable plug-and-play format. Available with the City Theatrical Multiverse® wireless DMX technology, the ColorSource Relay is ready to go with no programming required. If you want to personalize your setup, the relay supports RDM configuration and feedback.

ColorSource Relay is designed to conveniently mount to pipes, fixture yokes, or walls. As soon as the Relay begins receiving DMX signal, it switches on up to 16 A of supported fixtures. Auto-sequencing and zero-cross switching mitigate inrush nuisances automatically. When you are ready to call it a day, simply turn off your console and ColorSource Relay will automatically switch off after a userchangeable delay.

Use the ColorSource Relay with Multiverse anywhere you need to quickly and conveniently get power control and DMX to fixtures, hazers, or moving lights.

FEATURES

• CSR-M is compatible with the Multiverse SHoW Baby® right out of the box, just pair them and go!
• Input voltage: 90–250 V; 47–63 Hz
• Two-pole air-gap relay supports 208 V and Delta power applications
• Auto sequencing: randomized turn-on delay in each relay ensures that no two turn on at the same time across a system
• Zero-cross switching minimizes inrush draw
• Choice of relay mode:
  • Auto Mode (default) - switches on when DMX/RDM signal is detected; switches off after signal is no longer detected
  • DMX Mode - switches on when DMX address is at or above 50%; switches off below 50%
  • RDM Mode - switches on via RDM command; switches off via RDM command or power cycle
• RDM configuration via software such as ETC Concert or Eos
• Three mounting options: pipe, fixture yoke, and wall mount

WHAT'S INCLUDED

• ColorSource Relay Multiverse Receiver
• 2 dBi gain omnidirectional antenna (CSR-M only)

SPECIFICATIONS

CONTROL

• Input method: Multiverse wireless
• Output method: 5-Pin XLR Out (not self-terminating)
• Protocols: DMX512A, RDM, City Theatrical SHoW, DMX Neo® and Multiverse
• RDM configuration
  • RDM Enable
  • DMX Address (default:512)
  • Threshold (default: 50%)
  • Auto-Off/Sleep Timer (default: 5 min)
  • Max Turn On Delay (default: 2 s)
  • Relay Mode (default: Auto)
  • Wireless SHoW ID (default: 1=201)
  • Identify
• Local control: Wireless ID selection (CSR-M only) Software update Local USB port
• Software update: Local USB port

WIRELESS (Multiverse, SHoW DMX Neo)

• Band: 2.400–2.480 GHz
• Range: 100 m indoors, 500 m line of sight (subject to conditions)
• Broadcast power: 100 mW EIRP
• DMX latency:
  • SHoW DMX Neo: 7 ms
  • Multiverse: 4 ms
• RDM performance:
  • SHoW DMX Neo: DMX pause 100 ms
  • Multiverse: non-interfering

ELECTRICAL

• Voltage range: 90–250 VAC; 47–63 Hz; supports 120/208 V and Delta power
• Input / output method: Neutrik powerCON at 45 degrees
• Max current: 16 A
• Isolation: 2,500 V RMS
• Quiescent power consumption: CSR-M: 0.65 W

RELAY

• Switching: 2-pole air gap, 16 A max
• Mechanical endurance: 1,000,000 cycles
• Electrical endurance:
  • Resistive 100,000 cycles @ 16 A, 250 V
  • Inductive 100,00 cycles @ 6 A, 250 V
  • Ballast 20,000 cycles @ 6 A, 250 V
  • Electronic 20,000 cycles @ 13 A, 250 V

ENVIRONMENTAL

• Ambient operating temp: 0°–40° C (32°–104° F)
• Humidity: 5–95%, non-condensing
• Not rated for outdoor use

PHYSICAL

• Materials: Molded textured black plastic with integral safety connection point
• Mounting options: Pipe, yoke, or wall; accessories required (not included)
• Cooling: Convection cooled
• IP rating: IP20

WARRANTY

• 2 years

REGULATORY AND COMPLIANCE

• Approved regulatory standards: Conforms to UL 508, Certified to CSA C22.2 No. 14
• cETLus Listed
• CE Compliant
