ETC

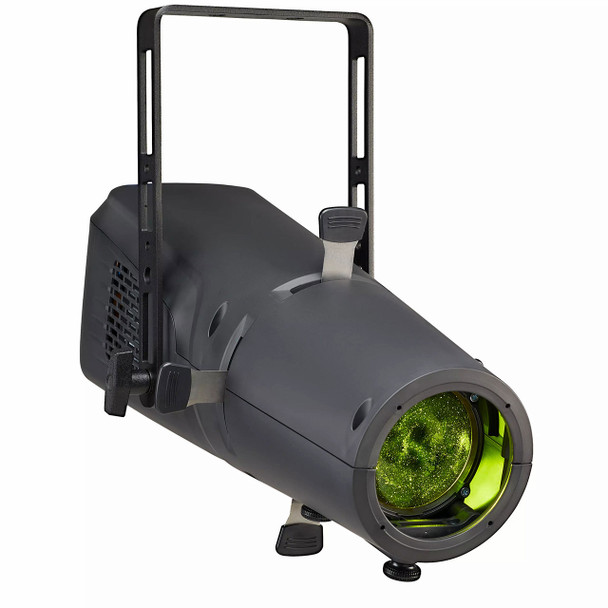

ETC ColorSource Spot jr, Black
- MPN:
- 7416A1001
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Source:
- LED
- IP-Rating:
- IP20
Description
The ETC ColorSource Spot jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot jr offers an amazing range of color. This fixture features the same color integrity technology as ETC’s other fixtures. Increasing the versatility of this fixture is its built-in zoom capabilities and 5,708 lumen output. (This fixture is also available in Deep Blue array - sold separately)
FEATURES
- ETC’s RGB-L array (red, green, blue and lime)
- Built-in 25-50 ° zoom
- Simple user interface with seven-segment display
- powerCON® in and thru
- DMX/RDM in and thru (5-pin XLR)
- LED droop compensation
- Optically calibrated
WHAT'S INCLUDED
- Hanging yoke
- 5 ft (1.5 m) powerCON power-input cable with a connector of choice
COLORSOURCE SPOT JR AVAILABLE LED ARRAYS
- Original - RGBL (red, green, blue and lime)
- Deep Blue - for rich, saturated blues and magentas (red, green, indigo and lime)
SPECIFICATIONS
SOURCE
- LED details: 52 Lumileds LUXEON® C LED
- Max lumens: 5,708
- Lumens per watt: 44.8
- L70 rating (hours to 70% output): >54,000 hours*
- *All LED sources experience some lessening of light output and some color shift over time
COLOR
- Colors used: Red, green, blue, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: Built in 25-50 degree zoom
- Gate size: 50 mm
- Aperture size: 6.25 in.
- Pattern projection: Yes
- Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
- Camera flicker control/Hz range 1,200 Hz (default) and 25,000 Hz (via RDM)
CONTROL
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- Modes (footprint): 4 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- FixtureLink: Yes
- Note: 15-bit virtual dimming engine
ELECTRICAL
- Voltage range: 100–240 VAC 50/60 Hz
- Input method: powerCON power in and thru
- Inrush (First half-cycle) : 35 A at 120 V, 45 A at 240 V
- Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
- Wattage typical/standby: 166 W/2.6 W at 120 V, 162 W / 2.0 W at 240 V
- Current draw typical: 1.40 A at 120 V, 0.73 A at 240 V
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (no)
- Droop compensation: Yes
- dB range: 20.2 dBA average at 1 m
- BTUs/hour: 549
PHYSICAL
- Materials: ABS plastic
- Exterior housing color: Black
- Mounting options: Yoke
- IP rating: IP20
- Weight: 12.0 lbs (5.4 kg)
- Height: 13.03 in (331 mm)
- Width: 10.17 in. (258 mm)
- Depth: 18.12 in. (460 mm)
INCLUDED ITEMS
- Hanging yoke
- 5 ft (1.5 m) powerCON power-input cable with a connector of choice
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- cETLus Listed
- Conforms to UL 1598 Listed
- Certified to CSA C22.2 No. 250 Listed
- CE Compliant, EAC Compliant
OPTIONAL ACCESSORIES
- Safety cable
- ColorSource Spot jr accessory holder (required to color frame or top hats)
- ColorSource Spot jr color frame (5.45 in. x 5.45 in.)
- ColorSource Spot jr top hat (5.45 in. x 5.45 in.)
- ColorSource Spot jr donut (5.45 in. x 5.45 in.)
- ColorSource Spot jr gobo holder (M size)
- ColorSource Spot jr in gate smooth wash diffuser
- powerCON to powerCON fixture jumper cable
