ETC ColorSource Spot V, Black
- Availability:
- This item is shipped directly from the vendor and is subject to their availability.
- Source:
- LED
- IP-Rating:
- IP20
Frequently bought together:
Description
The ETC ColorSource Spot V is an LED luminaire crafted by lighting experts with a proven history of quality spot fixtures, ColorSource Spot V brings a richness of color, increased brightness, and leading technology at a price point you’ll love. Featuring a five-color array of red, green, blue, indigo, and lime, the ColorSource Spot V provides soft pastels and bold saturated colors from a single fixture. Featuring wireless DMX/RDM control using Multiverse® technology, NFC configuration from your mobile device, and next level brightness, ColorSource Spot V is the ultimate in versatility.
FEATURES
- Five-color array (red, green, blue, indigo, and lime)
- Simple user interface with seven-segment display
- powerCON® TRUE1® TOP connector
- DMX/RDM in and thru (5-pin XLR)
- Multiverse wireless DMX/RDM
- NFC (near field communication) configuration
- LED droop compensation
- Optically calibrated
- Tour-ready, aluminum housing
- Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light
WHAT'S INCLUDED
- Hanging yoke
- 1.5 m power cable
- soft-focus diffuser in an A-size gobo holder
REQUIRED ACCESSORIES
- Lens tube
- LED50LT: LED-specific 50° EDLT lens (MPN: 7460A2008)
- 436EDLT: 36° EDLT lens (MPN: 7060A2048)
- 426EDLT: 26° EDLT lens (MPN: 7060A2047)
- 419EDLT: 19° EDLT lens (MPN: 7060A2046)
- 490LT: 90° lens (MPN: 7060A2052-K)
- 470LT: 70° lens (MPN: 7060A2051-K)
- 414LT: 14° lens (MPN: 7060A2050-K)
- 410LT: 10° lens (MPN: 7060A2001-K)
- 405LT: 5° lens (MPN: 7060A2000-K)
SPECIFICATIONS
SOURCE
- LED details: 60 Lumileds LUXEON® C and LUXEON Rebel LEDs
- Max lumens: 9,498
- Lumens per watt: 48
- L70 rating (hours to 70% output): >54,000 hours*
- *All LED sources experience some lessening of light output and some color shift over time
COLOR
- Colors used: Red, green, blue, indigo, lime
- Color temperature range: Color mixing
- Calibrated array: Yes
- Red shift: No
OPTICAL
- Beam angle range: Swappable lens tubes, 5 - 90 degrees
- Notes: Can be used with LED CYC and Fresnel adapters
- Gate size: 80 mm
- Aperture size: 6.25 - 14 in. (depending on lens tube)
- Pattern projection: Yes
- Pattern size: A or B
- Camera flicker control/Hz range: 5,000 Hz (default) and 25,000 Hz (via RDM)
CONTROL
- Input method: DMX512 via 5-pin XLR connector
- Protocols: DMX512, RDM
- Modes (footprint): 5 modes
- RDM configuration: Yes
- UI type: Seven-segment, three-button interface
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- FixtureLink: Yes
- Note: 15-bit virtual dimming engine
WIRELESS
- Band: 2.400 - 2.480 GHz
- Range 100 m indoors, 500 m line of sight (subject to conditions)
- Max receivers:
- DMX: No limit
- RDM: Varies by transmitter used
- Multiverse SHoW Baby®: 585
- Multiverse Transmitter: 5,000
- Broadcast power: 100 mW
ELECTRICAL
- Voltage range: 100 - 240 VAC 50/60 Hz
- Input method: powerCON TRUE1 TOP power in and thru
- Inrush (First half-cycle): 55 A at 120 V, 59 A at 240 V
- Fixtures per circuit: 8 fixtures (R20 module or similar)
- Wattage typical/standby: 199 W / 2 W at 100 V, 197 W / 2 W at 120 V, 194 W / 2 W at 240 V
- Current draw typical: 2 A / 0.07 A at 100 V, 1.65 A / 0.08 A at 120 V, 0.90 A / 0.10 A at 240 V
THERMAL
- Ambient operating temp: 0°–40° C (32°–104° F)
- Fan (controllable): Yes (no)
- Droop compensation: Yes
- dB range: 24.4 dBA average at 1 m
- BTUs/hour: 672
PHYSICAL
- Materials: Die-cast, all metal housing
- Exterior housing color: Black
- Mounting options: Yoke
- IP rating: IP20
- Weight: 7.7 kg (17 lb) (without lens)
- Height: 23.33 in (593 mm)
- Width: 13.36 in. (339 mm)
- Depth: 26.44 in. (672 mm)
WARRANTY
- Fixture 5 years
- LED array 10 years
REGULATORY AND COMPLIANCE
- ETLus Listed
- Conforms to UL 1598 Listed
- Conforms to UL 924 Listed
- Certified to CSA C22.2 No. 250 Listed
- Certified to CSA C22.2 No. 141 Listed
- CE, UKCA, RCM, and CCC Compliant
Related Products
Related Products
ETC ColorSource Spot jr, Black
ETC
$1,140.00
The ETC ColorSource Spot jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot jr...
ETC ColorSource Spot jr Deep Blue, Black
ETC
$1,140.00
The ETC ColorSource Spot jr brings a four-color light engine at a fraction of the cost and a fraction of the size. Using a mix of red, green, blue, and lime LED emitters, the ColorSource Spot jr...
ETC ColorSource PAR V Zoom LED, Black
ETC
$876.00
The ETC ColorSource PAR V Zoom is an LED luminaire crafted by lighting experts with a proven history of quality. The manual zoom eliminates the need for additional diffusion and lets you change...

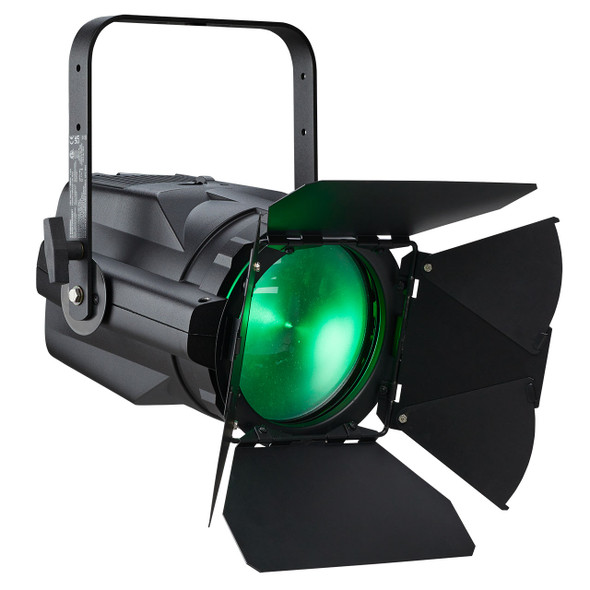

ETC ColorSource Fresnel V MAX LED, Black
