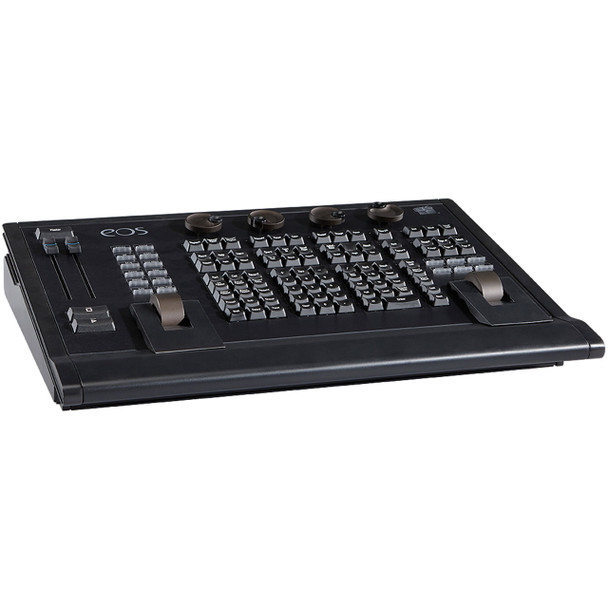

ETC Eos Programming Wing

The ETC Eos Programming Wing provides a portable home-base for the programmer on the move. The wing uses the familiar Gio and Gio@5 keyboard layout, so you can get to work immediately – no need to hunt for keys. With the Programming Wing, you get the freedom of mobile programming without missing out on control features. Each wing includes playback controls, four parameter encoders, level and rate controls as well as DMX512-A/RDM outputs. It is compact enough move from room to room in a venue or to take on the road.

Eos Programming Wing can be used as a facepanel remote for ETCnomad (either PC or Mac) or ETCnomad Puck.
It can also be used as a programming surface for the Eos and Ion Xe Remote Processor Units (RPUs) and the RVI3.

It cannot be used on any ETC hardware that has a dedicated facepanel and connected devices must be running Windows 7 or higher or Mac OSX El Capitan (10.11) or later. The Eos Programming Wing is not compatible with Windows XP or earlier Microsoft operating systems. The wing provides power sensing and automatically turns on when both an active USB data connection and mains power is provided via the external 12V power supply.

FEATURES

• Same keypad layout as Gio
• Backlit keys
• Master Fader Pair
• Four DMX512/RDM ports
• Contact Closure Trigger
• Two Powered USB ports for connectivity
• One USB port to store and secure an ETCnomad Dongle
• One Littlite connection
• VESA 100x100mm mountable
• Provides a Kensington Lock compatible locking point

WHAT'S INCLUDED

• Power supply
• IEC power cord
• Dust cover
• USB cable

INTERFACES

• AC Input (100 - 240 VAC at 50/60Hz) with external power supply
• Four DMX512/RDM ports
• Three USB ports
• Contact Closure Trigger

PHYSICAL

• Weight: 10.0 lb (4.5 kg)
• Height: 4.04 in. (103 mm)
• Width: 19.55 in. (497 mm)
• Depth: 14.24 in. (362 mm)
