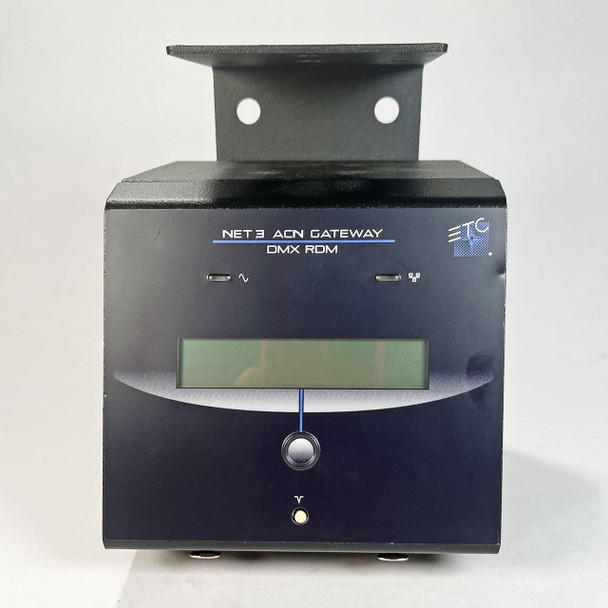

ETC Net3 DMX/RDM Touring Two-Port Output Gateway 4261A1003

The ETC DMX/RDM Two-Port Gateway provides network data distribution of RDM and data-level information. Built on the reliability and quality of ETC’s Network development, DMX/RDM Gateways are built for the industry-standard ACN protocol. The Gateway is an Ethernet device that uses bidirectional communication with other network devices to send and receive DMX512 and RDM data, as well as ACN/sACN.

FEATURES

• Distributed DMX and RDM over Ethernet
• Supports Net3 protocol powered by ACN
• DMX/RDM Output/Input
• Distributes DMX data to any input/output device
• Two DMX connections using 5-pin Male or Female XLR
• LCD screen for labeling, status and configuration information
• Power and Network status indicators
• Power over Ethernet (PoE) or external DC power supply
• Configurable using Net3 Concert software or directly from ACN

SPECIFICATIONS

GENERAL

• MPN: 4261A1003
• Distributes DMX over Ethernet with any compatible input or output device
• RoHS Compliant (lead-free)
• CE compliant and ETL LISTED

FUNCTIONAL

• Supports Net3/ACN (ANSI E1.31 and E1.17)
• Supports RDM (ANSI E1.20)
• Supports USITT DMX512-A (ANSI E1.11)
• USITT DMX512 and ANSI E1.11 DMX512-A compliant
• Compliant with IEEE 802.3i for 10BASE-T, 802.3u for 100BASE-TX and 802.3af for Power over Ethernet
• Advanced Input Patch (AIP) allows any incoming address to be associated with any sACN address
• Flexible Output Patch (FOP) allows a 512 address universe to begin at any output address
• Support for per-address or per-universe level priority

MECHANICAL

• Fabricated from 16-gauge cold-rolled steel
• Black, fine-textured, scratch-resistant, powder-coat finish
• Two integrated DMX Input or Output ports
• Menu button for backlight/paging control
• Backlit LCD display for identification and status reporting:
  • Gateway identification
  • Network configuration
  • DMX port configuration
  • DMX port status
  • RDM configuration
• Front and rear power and data indicators
  • Blue power indicators
  • Green network activity indicator
• RJ45 for connection to lighting network
• Reset button for hard reset or forced reboot
• Flush-mount using standard two-gang back box (Raco 691 with half-inch-minimum mud ring or Raco 696 deep box)
• Surface-mount back boxes available form ETC (4105A2002)
• Hanging bracket and connectorized back box included with Touring version

PROCESSOR

• Maximum delay time from input to output not greater than one packet time
• Selectable DMX refresh rate with a maximum at least 40Hz

ENVIRONMENTAL

• Ambient operating temperature: 0°–40° C (32°–104° F)
• Operating humidity: 5–95% non-condensing
• Storage temperature: -40°–70° C (-40°–158° F)

ELECTRICAL

• Supports IEEE802.3af Power over Ethernet or optional 8-28Vdc external power supply
• Maximum power consumption: 5 watts /li>

DMX PORTS

• Two integrated 5-pin XLR connectors
• Software-configurable for input or output
• Fully optically-isolated input from the Gateway electronics
• Withstands fault voltages of up to 250VAC
• Integrated DMX/RDM termination

CONFIGURATION

• Local configuration options
• Remote configuration provided by Net3 Concert
  • Supports up to 512 DMX addresses per port
  • Supports up to 63,999 Streaming ACN universes
• DMX data input or output configurable by user
• Multiple sources may be combined to the network with each source or address allowed an independent priority
• Individual port start address and offset
• User-configurable labeling

PHYSICAL

• Dimensions (HxWxD): 6.47" x 4.88" x 5.41" (165 x 124 x 137 mm)
• Weight: 3.9 lbs. (1.8 kg)
• Shipping Weight:  4.8 lbs (2.2 kg)
