ETC

ETC Source Four 15-30 Degree Zoom with Edison plug

Write a Review
MPN:
7060A1040-0X
Condition:
Used
Availability:
Usually ships within 2 business days when in stock.
Type:
Zoom
Source:
tungsten

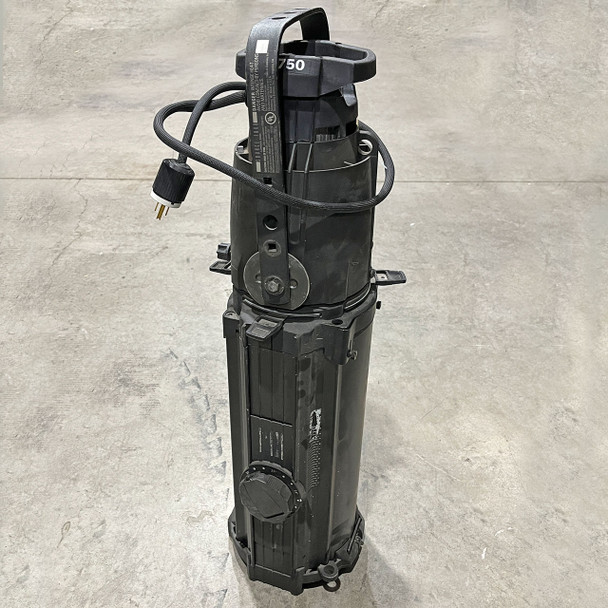

  • Used ETC Source Four 15-30 Degree Zoom angle
  • Used ETC Source Four 15-30 Degree Zoom
  • Used ETC Source Four 15-30 Degree Zoom front
  • Used ETC Source Four 15-30 Degree Zoom zoom knob
  • Used ETC Source Four 15-30 Degree Zoom top
  • Used ETC Source Four 15-30 Degree Zoom 750W cap
$150.00
Frequently bought together:

Description

Used – Acceptable: The item is still functional but is fairly worn. Bears signs of wear such as scratches, dents, worn corners, or identifying markings. Parts, accessories, and instructions may be missing.

With the ETC Source Four 15-30° Zoom, you only need one fixture for a variety of field angles. Plus, Source Four Zoom makes it easy: ETC's patented one-handed zoom operation makes adjustments quick, simple and safe. Technicians can focus with one hand and hold the ladder with the other.

The Source Four combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.

FEATURES

  • 15-30° field angle
  • Rated up to 750W
  • Super-efficient HPL lamp
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Interchangeable lens tubes
  • Rotating barrel ± 25º
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Supports Dimmer Doubling (North America only)

NOTE: Does NOT include C-clamp, safety cable, color frame or lamp!

SPECIFICATIONS

PHOTOMETRIC

  • Minimum beam angle: 11º
  • Maximum beam angle: 21º
  • Minimum field angle: 16º
  • Maximum field angle: 31º

ELECTRICAL

  • 115-240V, 50/60Hz
  • High temperature 3-conductor 36” leads in a glass fiber outer sleeve
  • Supports ETC Dimmer Doubling technology

LAMP

  • 750W maximum

PHYSICAL

  • Weight: 21 lb (9.5 kg)
  • Height: 21.1 in (536 mm)
  • Width: 13.4 in. (341 mm)
  • Depth: 29.2 in. (742 mm)
