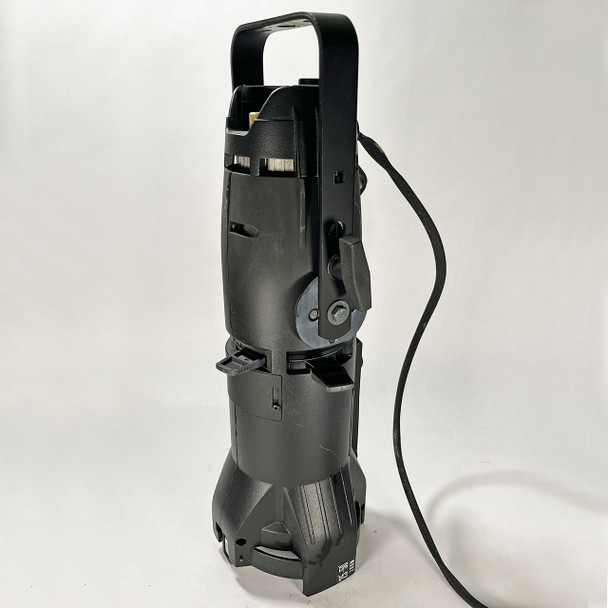

ETC Source Four Jr 25-50 Degree Zoom
- MPN:
- 7062A1009
- Condition:
- Used
- Availability:
- Usually ships within 2 business days when in stock.
- Type:
- Zoom
- Source:
- tungsten
Description
Used – Acceptable: The item is still functional but is fairly worn. Bears signs of wear such as scratches, dents, worn corners, or identifying markings. Parts, accessories, and instructions may be missing.
NOTE: Example photos of one unit. The pictures are of one unit and are representative of the condition of the other units. The unit you receive will vary from the images.
The ETC Source Four jr uses the same technology that made the Source Four famous. That means unsurpassed imaging and beam quality, compared to conventional 1000W ellipsoidal spotlights, Source Four jr's 575 watts deliver brighter light.
If you're looking for the field-angle versatility of a zoom ellipsoidal with the economy and compact design of a smaller fixture, then you're looking for the Source Four jr Zoom. No compromising on quality either-Source Four jr Zoom boasts rugged ETC fixture construction and all the celebrated optics of a Source Four.
FEATURES
- 25-50° Zoom
- Rated up to 575W, Super-efficient HPL lamp, Faceted dichroic reflector removes 90% of IR heat from beam
- Two-plane stainless-steel shutter blade assembly
- Two accessory slots
- Tool-free lamp adjustment
- Rugged die-cast aluminum construction
- Supports Dimmer Doubling
NOTE: Does NOT include connector, lens tubes, C-clamp, safety cable, color frame or lamp!
SPECIFICATIONS
PHOTOMETRIC
- Minimum beam angle: 21º
- Maximum beam angle: 40º
- Minimum field angle: 28º
- Maximum field angle: 50º
ELECTRICAL
- 115-240V, 50/60Hz
- High temperature 3-conductor 36” leads in a glass fiber outer sleeve
- Supports ETC Dimmer Doubling technology
LAMP
- 575W maximum
PHYSICAL
- Weight: 11 lb (4.5 kg)
- Height: 18.5 in (470 mm)
- Width: 9.7 in. (246 mm)
- Depth: 19.3 in. (490 mm)
