ETC

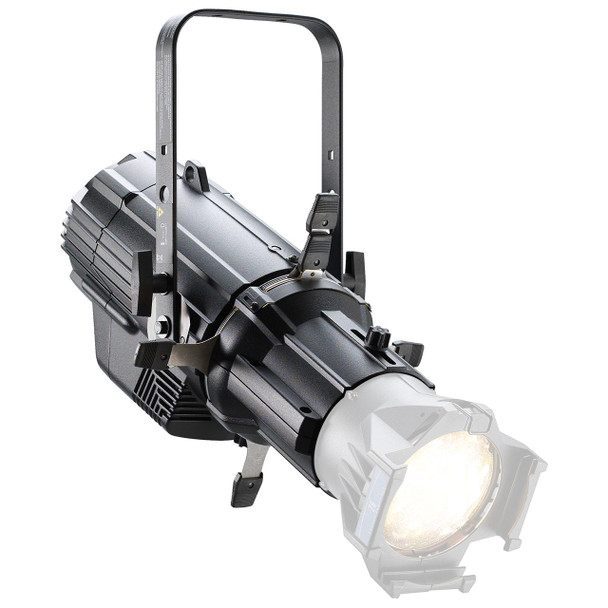

ETC Source Four LED Series 2 Lustr, Black (No lens tube)

Write a Review
MPN:
7461A1051
Availability:
This item is shipped directly from the vendor and is subject to their availability.
Source:
LED
IP-Rating:
IP20
$2,156.00

Description

ETC Source Four LED Series 2 - light engine only (without shutter barrel) - Black housing
For use with ETC zoom lens tubes, adapters, and for retrofit of exisiting fixtures

Source Four LED Series 2 Lustr

Series 2 light engines work with all Source Four lens tubes to deliver a high-quality, controllable beam of LED light. For the best results, ETC highly recommends that you use EDLT lens tubes. There is a special LED-only version of the 50° lens tube. Combine with available adapters to transform your fixture into a fully functional Fresnel or CYC light.

FEATURES

  • Interacts seamlessly with conventional sources
  • Beautifully illuminates skin tones and other objects for natural appearance and high color rendering
  • Multiple control options, including Direct, RGB, HSIC, and console-free modes
  • 15-bit virtual dimming engine for smooth fades and minimal color shift during dimming
  • With multiple modes and fixture settings including color mixing as ‘hue, saturation, brightness’ or ‘RGB'
  • ETL Listed to UL1573; IP20 rated
  • Combine with available adapters to transform your fixture into a fully functional fresnel or CYC light

REQUIRED ACCESSORIES

  • Fixed field lens tubes
    • 19°, 26°, 36° EDLT (enhanced definition lens tubes)
    • LED-specific 50° EDLT (enhanced definition lens tubes)
    • 5°, 10°, 14°, 70°, 90° (standard lens tubes)

WHAT'S INCLUDED

  • Soft-focus diffuser in an A-size gobo holder
  • Hanging yoke
  • 1.5 m powerCON power-input cable with a connector of choice

SOURCE FOUR LED SERIES ARRAY

  • Lustr - based on the x7 Color System, utilizing seven colors including high-output lime to achieve true, usable broad-spectrum color. Adds lime and more red emitters compared to the Series 1 LED array.

SPECIFICATIONS

SOURCE

  • LED details: 60 Lumileds LUXEON® Rebel LED
  • Max lumens: 11,512
  • Lumens per watt: 52.7
  • L70 rating (hours to 70% output): >60,000 hours*
    • *All LED sources experience some lessening of light output and some color shift over time

COLOR

  • Colors used: Red, red-orange, mint, blue, indigo
  • Color temperature range: 2,700-4,500 K
  • Calibrated array: Yes
  • Red shift: Yes (can be disabled)

OPTICAL

  • Beam angle range: Swappable lens tubes between 5-90 degrees
  • Gate size: n/a (without a shutter barrel)
  • Camera flicker control/Hz range: 900–25,000 Hz
  • Note: Can be used with LED CYC and LED Fresnel adapters

CONTROL

  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512, RDM
  • Modes (footprint):
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • FixtureLink: Yes
  • Note: 15-bit virtual dimming engine

ELECTRICAL

  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON power in and thru, requires power from a non-dimmable source
  • Inrush (First half-cycle) : 50 A at 120 V, 107 A at 240 V
  • Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
  • Wattage typical/standby: 208 W at 120 V
  • Current draw typical/standby: 2.08 A at 120 V, 0.93 A at 240 V

THERMAL

  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (Yes)
  • Droop compensation: Yes
  • dB range: 22.5 dBA average at 1 m
  • BTUs/hour: 709

PHYSICAL

  • Materials: Die-cast, all metal housing
  • Exterior housing color: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 18.3 lbs (8.3 kg) without lens tube
  • Height: 24.2 in (615 mm) without lens tube
  • Width: 13.3 in. (338 mm) without lens tube
  • Depth: 21.6 in. (548 mm) without lens tube

INCLUDED ITEMS

  • Soft-focus diffuser in an A-size gobo holder
  • Hanging yoke
  • 1.5 m powerCON power-input cable with a connector of choice

WARRANTY

  • Fixture 5 years
  • LED array 10 years

REGULATORY AND COMPLIANCE

  • cETLus Listed
  • Conforms to UL 1573 Listed
  • Certified to C22.2 C22.#166
  • CE Compliant

OPTIONAL ACCESSORIES

  • Safety cable
  • Swappable lens tubes between 5-90 degrees
  • Pattern holders (A or B sized)
  • Glass pattern holder
  • Drop-In iris
  • Color frames (size depend on lens tube)
  • Donut (size depend on lens tube)
  • Top hat (size depend on lens tube)
  • Half hat (size depend on lens tube)
  • powerCON to powerCON fixture jumper cable
  • Various diffusers
