High End DataFlash 5000

Surprisingly compact and impressively bright, the High End Systems Dataflash 5000 brings a dynamic strobe and blinder solution to any stage. Designers can make the look their own with the ability to go from a warm 3200 K strobe to a cool 7500 K strobe, plus eight segment RGB Pixel control all backed by more than 50,000 lumens of powerful light. The included Reflector Dome and EC Dome make the design even more customizable, whether designers want high-impact strobes or eye-catching effects. With an IP65 rating, Dataflash 5000 shines brightly at indoor and outdoor gigs.

FEATURES

• High-Impact 3200-7500 K strobe LED
• 120 RGB LEDs controllable in eight macro-and pixelcontrolled segments
• 1000 W total LED power
• Fixture output exceeding 50,000 lumens
• Weatherproof (IP65)

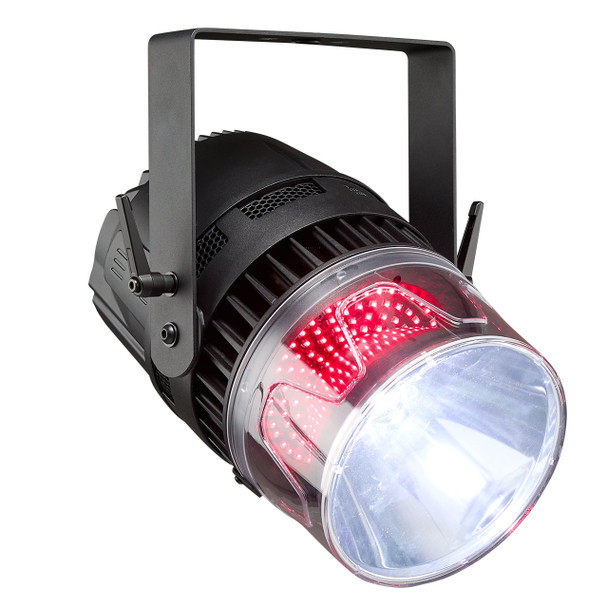

• Controlled high-impact strobes at 60 degrees with the distinctive Reflector Dome (included)
• Unleash blazing strobe and eye candy power with alternative "EC" Dome (included)
• Patented HazeFree™ coatings keep domes clean and bright
• Back-lit UI with four-button navigation

WHAT'S INCLUDED

• Dataflash 5000
• Reflector Dome
• EC Dome
• X Series IP65 to bare end fixture tail
• Yoke
• Safety cable

• LED Engine (Center): Dual White LED COB
• LED Engine (Eye Candy): 120 x Custom RGB LEDs
• Max Integrating Sphere Lumens: 52,000
• LPW: 52
• LED Life: 50,000 hours

COLOR

• Color Mixing: RGB color mixing in eight (8) segments across fixture face
• Color Temperature: Variable from 3200 K to 7500 K via CT channel

OPTICAL

• Light Dispersion (with Reflector Dome): 60° central blinder/strobe, Wide area and haze color light distribution
• Light Dispersion (with EC Dome): 120° Degree color and white distribution
• Aperture Size: 216 mm
• Flicker Control/Hz Range: 2.4 kHz and 16.6 kHz

CONTROL

• Input Method: DMX (5-pin)
• Protocols: DMX via RS-485
• Modes (Channel Footprint): Reduced (7), Standard (19), or Expanded (40)
• RDM Functions: Yes
• Strobe Functions: Yes
• Macro Functions: Yes
• Pixel Control: Eight (8) pixel segment control
• UI Type:
  • Black and white display with
  • 4-button navigational control
  • NFC configuration
• Local Control: Yes
• Dimming Performance: 16-bit, DMX controlled

ELECTRICAL

• Voltage Range: 100–240 V 50–60 Hz
• Input Method: Seetronic® X Series IP65 input or powerCON TRUE1 TOP
• Wattage: 1000 W
• Current (Max): 9.54 A @ 100 V, 3.62 A @ 240 V
• Inrush (First Half Cycle): 120 V: 25 A, 230 V: 101 A
• Fixtures per Circuit: 1 fixture (R20 module or similar)
  • Note: X Series IP65 connector rated for 20 A (120 V/60 Hz) and 16 A (240 V/50 Hz)

THERMAL

• Ambient Operating Temp: -10°C to 40°C (14°F to 104°F)
• Continuous Operation: Yes
• Fan Mode: Four fan modes, Boost, Standard, Studio, Quiet

PHYSICAL

• Materials: Aluminum with acrylic dome
• Color: Black
• Mounting Options: Any orientation
• IP Rating: IP65
• Dimensions (L x W x H)
  • Without Dome: 11.2 x 13.7 x 11.6 in. (283 x 349 x 294 mm)
  • With Dome: 13.9 x 13.7 x 11.6 in. (353 x 349 x 294 mm)
• Weight (with Reflector Dome): 7.0 kg (15.5 lb)
• Shipping Dimensions: 10.6 x 13.25 x 20.75 in.
• Shipping Weight: 19.4 lbs (8.8 kg)
• Included Accessories
  • Reflector Dome
  • EC Dome
  • X Series IP65 to bare end fixture tail
  • Yoke
  • Safety cable

WARRANTY

• Five (5) years for light engine
• Two (2) years for complete fixture
