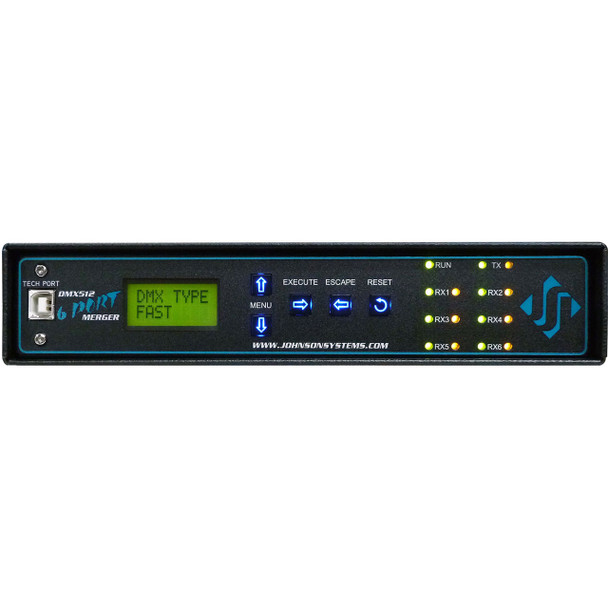

JSI DMX 6-Port Merger/Managers

*Discontinued by manufacturer. Limited stock available while quantities last.

JSI’s DMX 6-PORT MERGER combines up to six DMX512 data lines into one DMX512 universe. A cost-effective DMX input management solution for temporary and hardwired installations requiring multiple DMX sources or multiple opto-isolated DMX input locations.

Model variants include compact portable, 19" rack mount and installation boxes for permanent installations. DMX I/O options include RJ45, terminal block and 5-Pin XLR connector. Input DMX data streams are combined in a "Highest Take Precedence"(HTP) or "Pile On". Multiple units can be cascaded together for larger installations. A USB "TECH PORT" interface (for use with a *PC) for ease of monitoring DMX output level data on all 512 channels at one time.

JSI DMX 6-Port Merger Datasheet

FEATURES

• Six DMX512 inputs, one DMX512 output.
• State-of-the-art design permits "real-time" DMX merging/combining of all six DMX inputs at 44 packets per second.
• LCD display for easy setup and monitoring.
• Power and DMX status LED indicators.
• DMX I/O options include 5 pin XLR, terminal block, and RJ45.
• USB "TECH PORT" for *PC monitoring of all DMX inputs and output.
• Removable EEPROM memory module allows for ease of firmware upgrade.
• Unique power saving standby (idle) mode reduces power consumption to less than 1 Watt, a "green" power management product.
• Keypad lockout prevents unauthorized access.
