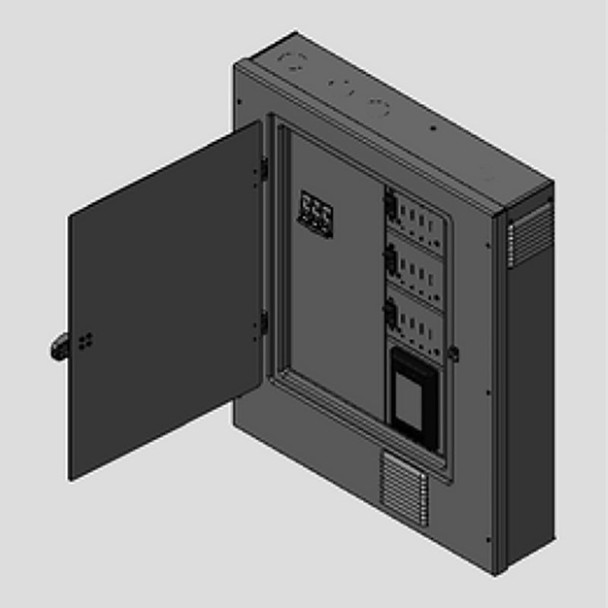

JSI LED Dimmer Relay Panel 2 module 8-circuits 4800W

*POA

The JSI panels can be custom-built with factory-installed modules in your preferred order. Options include dual relay, quad relay, or quad dimmer. Our intelligent dimmers use advanced reverse-phase control, are rated at 600W, and support full-range dimming (1–100% DMX) for both LED and incandescent loads. Air-gap relays switch ON/OFF at selectable DMX thresholds from 10% to 90%.

0–10VDC analog outputs can be set as a source or sink for direct drive of analog ballasts. Every circuit includes protection against overload, short circuit, temperature, overvoltage, and inductive load, ensuring safe lighting control. LED indicators and real-time error reporting feed directly to the command control for advanced diagnostics typically reserved for high-end systems.

The Presidor™ Command Controller features a full-color capacitive touch GUI for fast setup and automatic error reporting. With smart operation and an intuitive design, these relay cabinets deliver exceptional lighting performance.

JSI Presidor Panel Series Datasheet

FEATURES

• Combine reverse-phase LED dimmers and air-gap relays in one panel.
• Have dimmers that employ MOSFET power outputs for unsurpassed dimming efficiency (≥99%).
• Use 277VAC-rated 50-AMP tungsten “Air-Gap” relays in the relay modules.
• Support easy panel configuration with a modular design.
• Provide DMX input with an optional Ethernet node.
• Use an analog 0-10VDC source or sink capability on relay outputs.
• Come available in 8, 12, or 24 channels.
• Include an optional local disconnect breaker.
• Deliver intelligent load and error sensing and reporting.
• Integrate full color, capacitive touch GUI Command Control.
• Achieve ultra-low standby power for "Green" compliance.
• Supply a 24VDC 600mA isolated output power supply (PWS).
• Incorporate fire contact input.
• Maintain ETL certification while being built to the UL 508A standard.
• Have 19 patents issued for the U.S., Canada, and Europe
