JSI Presidor Room Linker Combiner

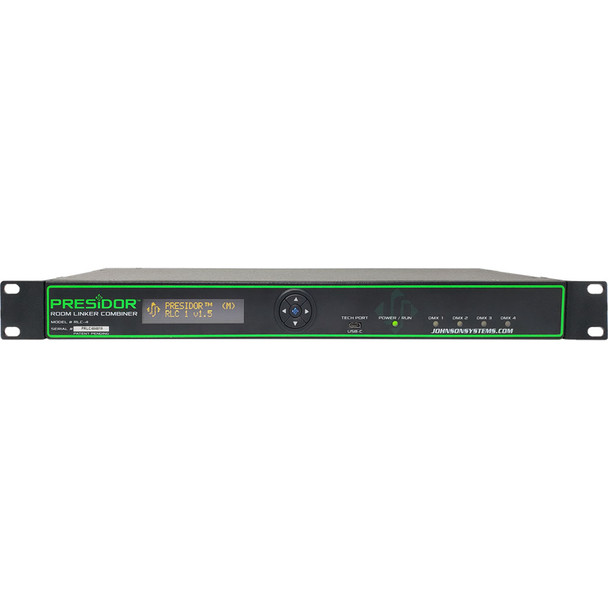

Presidor™ Room Linker/Combiner (PRLC-4) is an intelligent multi-port DMX512 merger designed as the "hub" for the Presidor™ Wall Stations (PWS). PRLC-4 will allow input streams of DMX512 data to be merged when contact inputs are “patched” to create a larger room/zone. Each PRLC-4 will support up to 4 rooms/zones of PWS wall stations (DMX512) with isolated DMX inputs and an integrated 48VDC power supply to each room/zone. Multiple PRLC-4’s (maximum 8) can be cascaded together with RJ45 connection to permit up to 25 rooms/zones of PWS controls merged into a single DMX512 output. Field connections are either via RJ45 with Cat5/5e/6 wiring or terminal block over existing Belden 9773 wiring. Four (4) programmable maintained dry-contact inputs permit PWS (Presidor™ Wall Station) linking in any possible room/zone combination. At only 1RU in height the PRLC-4 will fit in any standard 19" rack or can be supplied with a small purpose built 19″ wall mount rack (PRLCR-4U).

JSI Presidor Room Linker Datasheet

FEATURES

• Four opto-isolated DMX512 data inputs with 48VDC power for direct connection to room/zone Presidor™ Walls Station (PWS) inputs.
• One DMX512 "merged" output.
• Field connections are via either RJ45 with Cat5/5e/6 wiring or "Phoenix style" terminal block over existing Belden 9773 wiring.
• Multiple PRLC-4’s can be cascaded together to support up to 25 rooms/zones of Presidor™ Wall Stations (PWS).
• Intuitive user interface comprising of high contrast, low power, O-LED display and navigational pod interface allows for ease of operation.
• Four programmable maintained dry-contact inputs for room linking.

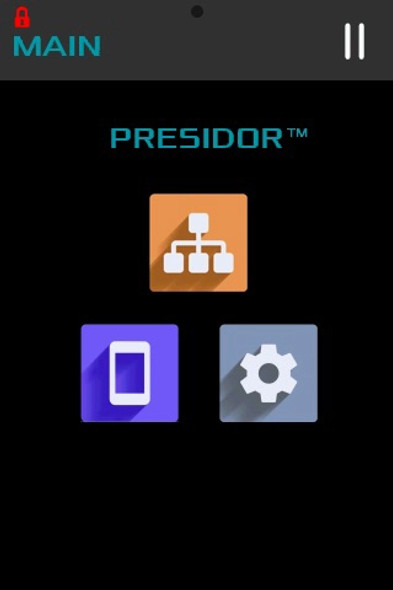

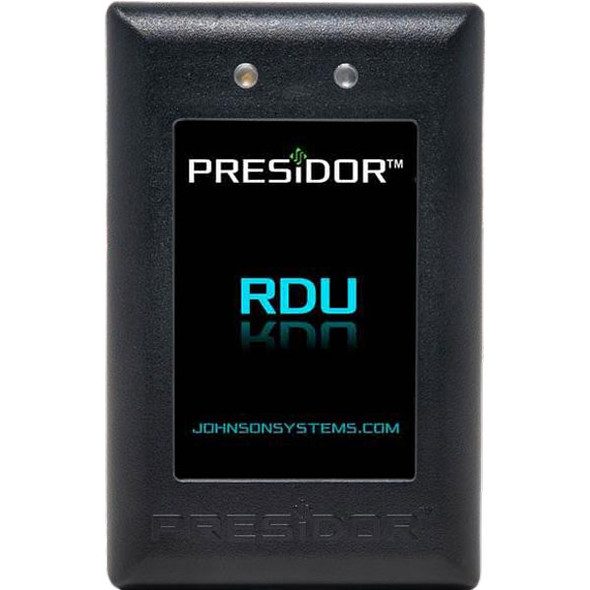

• Integrated network RJ-45 connection to optional Presidor™ Remote Display Unit (RDU) via Cat5/5e/6 wiring.
• State-of-the-art high speed, low power "green" processor.
• Onboard memory dongle for easy save and restore of all programmed "room patching".
• Face panel LED indication of individual DMX room data inputs and power.
• A 12VDC (10 Watt) supply to power industry standard auxiliary low voltage equipment.
• UL approved NEMA C13 fused power disconnect (universal computer power receptacle) with integral illuminated power switch. Power cable included.
• Patented.
