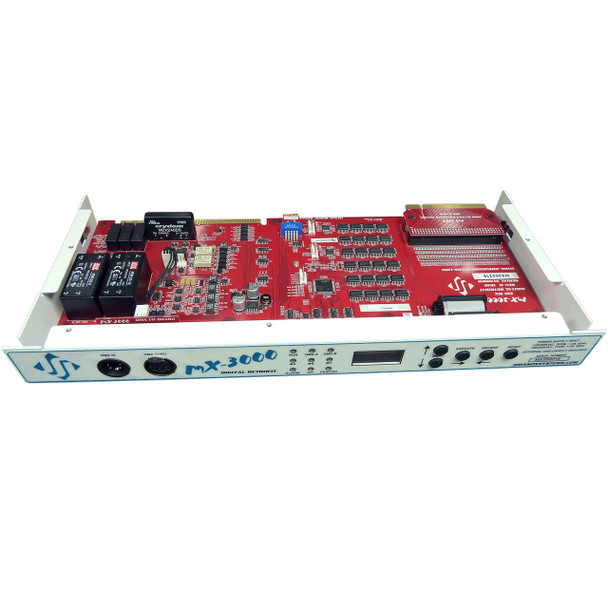

JSI Retrofit Processor MX-3000 for EDI/Cooper Dimmer Racks

The MX-3000+ is a next generation retrofit electronics package designed specifically for upgrading the EDI/Cooper MX Series performance dimmer racks making system replacement completely unnecessary. This full-featured, state-of-the-art control module provides a direct digital interface to most of today’s modern lighting communication protocols. Designed based on the successful 3000 Series control technology developed by JSI, the MX-3000+ shares identical firmware and features as other popular 3000 Series products.

The MX-3000+ installs in minutes by simply "plugging" into the existing OEM backplane. This compact unit has been designed for OEM rack compatibility, longevity and reliability with the end-user in mind. Intuitive LCD user interface combined with a single modular design makes the MX-3000+ extremely user-friendly and easily serviceable. Advanced next generation hardware and software designs reduce stand-by power consumption to less than 1 Watt, allowing for compliance with the International Energy Agency’s "One Watt Initiative" for standby power consumption. MX-3000+ is over 4x more energy efficient that the obsolete OEM electronics!

Full featured, hi-resolution dimming with ultra-fast response. Exclusive "lamp warming" techniques extends lamp life considerably. An environmentally and financially responsible solution that offers unsurpassed high performance in a matter in minutes!

JSI MX-3000 Control Module Datasheet

FEATURES

• Compatible with OEM dimmer rack backplane and input PCB's for fast easy installation. Installs in minutes.
• 4x more energy efficient than the OEM electronics.
• Unique "lamp warming" feature lowers the dimmer to cold lamp filament by up to 70% resulting in significantly increased lamp filament life and lower cost of ownership.
• 96 Hi-resolution digital outputs with individual dimmer profile selection.
• Individual channel threshold trigger in 10% increments for non-dim control "hard-fired" loads.
• Dual opto-isolated DMX512 inputs with built-in protocol manager.
• Analog and dedicated dry contact BMS inputs for interface with HVAC, security and fire alarms.
• "Load Shed" inputs for power management, occupancy sensor or photocell interface.
• LCD user interface for ease of set up and monitoring. Site programmable via a user-friendly, intuitive and self-prompting menu structure. No laptop computer or special software is required!
• Dimmer rack thermal shutdown protection.
• Removable memory dongle permits remote/off site backup of configuration data and ease of future firmware upgrades.
