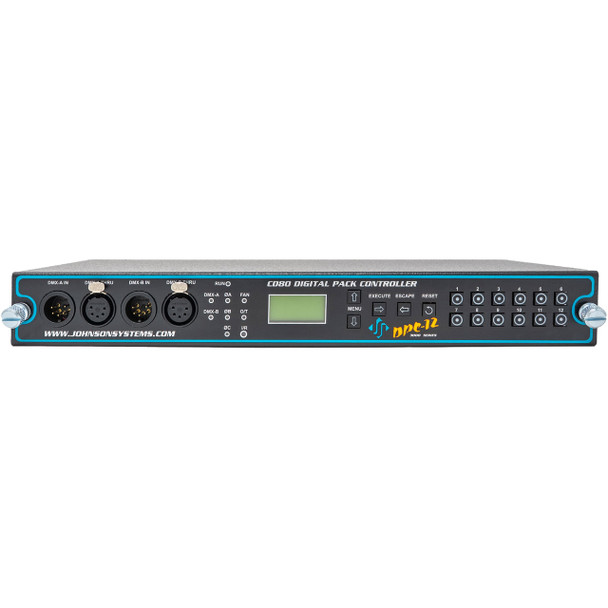

JSI Retrofit Processor Strand CD80 Next Gen 12x2.4kW and 6x6kW dimmer packs

Digital Pack Controllers (DPC’s) are a next generation retrofit electronics package designed specifically for upgrading Strand CD80® 12 channel and 6 channel dimmer packs. This direct plug-in replacement control module supersedes all previous generations of OEM and aftermarket controllers in both reliability and features.

"Basic Mode", on power up, was designed specifically at the request of major U.S. studios and rental houses. Advanced features for the more selective user allow customization of over 30 additional features. Advanced next generation "3000 Series" hardware and software designs reduce stand-by power consumption to less than 1 Watt. Exclusive "lamp warming" techniques extends lamp life considerably.

JSI DPC Series Datasheet

FEATURES

• Works with Strand CD80 12 x 2.4kW, 6 x 6kW and 6 x 12kW Portable Dimmer Packs.
• Directly replaces existing OEM or after-market control module(s) with superior "brains"!
• LCD display and intuitive user interface make operation fast and simple.
• "Basic Mode", on power up, simplifies set up for standard DMX users.
• 12 buttons selectable for either "Bump" or "DMX Snapshot/Preset" with LED intensity adjust.
• Unique "lamp warming" feature lowers the current inrush/shock to cold lamp filament by up to 70% resulting in significantly increased lamp filament life and lower cost of ownership.
• Hi-resolution digital outputs with individual dimmer profile selection.
• Dual opto-isolated DMX512 inputs with built-in protocol manager.
• Removable memory module permits remote and/or off site backup of configuration data and ease of future firmware upgrades.
