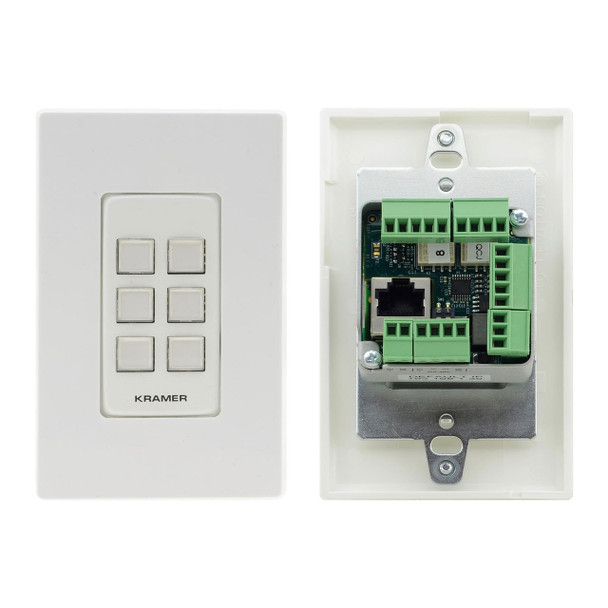

Kramer RC-306/US-D(W/B) 6 Button PoE and I/O Control Keypad

RC-306 is a compact 6-button control keypad that fits US, European and UK standard 1-gang wall junction boxes. Easy to deploy with a single LAN cable carrying both power (PoE) and communication, it fits decoratively within a room design. It is perfectly suited for use as a user interface keypad within a Kramer Control system. Using K-Config, tap into the rich, built-in I/O interfaces that enable this keypad to be used as a flexible, standalone room controller. In this way, it is ideal for classroom and meeting room control, providing end-user convenient control of complex multimedia systems and other room facilities such as screens, lighting and shades. Multiple keypads can be linked together side-by-side or at a distance, via a single K-NET™ cable carrying both power and communication, providing uniform design and user experience.

FEATURES

• 6 RGB-color, backlit buttons
• PoE acceptor
• Modular frames compatibility
• Connectable to auxiliary KNET™ keypads
• Supported by all Kramer control platforms

SPECIFICATIONS

• Inputs: 1 IR Sensor: For IR learning
• Outputs: 2 IR:
• On 2–pin terminal block connectors
• 2 Relays: On 2–pin terminal block connectors (30VDC, 1A)
• Ports:
  • 1 Ethernet: On an RJ-45 female connector for PoE, device configuration, control and firmware upgrade
  • 2 RS-232: On 3-pin terminal block connectors
  • 1 RS-485: On a 3-pin terminal block connector
  • 1 K-NET: On a 4-pin terminal block connector
  • 2 Relays: On 2-pin terminal block connectors (30V DC, 1A)
  • 1 GPI/O: On a 2-pin terminal block connector
  • 1 Mini USB: On a female mini USB-B connector for configuration and firmware upgrade
• General: Default IP Settings: DHCP Enabled
• Power: Source: PoE or 12V DC 2A power supply
• Power Consumption: 12V DC, 780mA
• Operating Temperature: 0° to +40°C (32° to 104°F)
• Storage Temperature: -40° to +70°C (-40° to 158°F)
• Humidity: 10% to 90%, RHL non–condensing
• Safety Regulatory: CE, UL
• Environmental Regulatory: RoHs, WEEE
• Enclosure: Size: 1-Gang wall plate
• Cooling: Convection ventilation
• Accessories:
  • Included with All Versions: Power adapter, tweezers for removing button caps, standard button label set
  • Included with US-D Version: 2 US Frame sets and faceplates (1 in black and 1 in white)
• Dimensions: 6.98cm x 4.70cm x 11.43cm (2.75" x 1.85" x 4.50" ) W x D x H
• Weight: 0.1kg (0.2lbs) approx.
• Shipping Dimensions: 11.50cm x 4.70cm x 7.00cm (4.53" x 1.85" x 2.76" ) W, D, H
• Shipping Weight: 0.4kg (0.8lbs) approx.
