Light Source, The

Light Source Mega-Trackhanger Long, Black

Write a Review
MPN:
MTLB
Availability:
Usually ships within 2 business days when in stock.

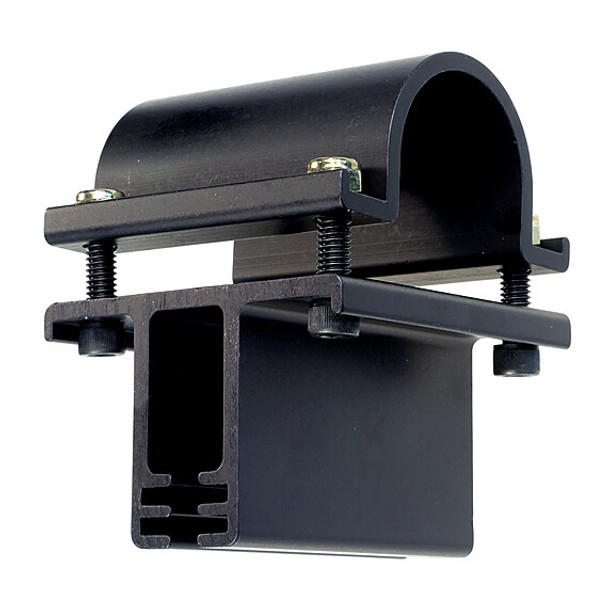

  • Light Source Mega-Trackhanger Long
  • Light Source Mega-Trackhanger Long - close up of slots
  • Light Source Mega-Trackhanger Long - curtain track in lower slot
  • Light Source Mega-Trackhanger Long - curtain track in upper slot
$24.70
Frequently bought together:

Description

The LightSource Mega-Track Hanger, Long, makes it easy to hang 140 or 300 series track onto pipe grids, or from individual pipes. The Mega-Track Hanger Long hangs from the upper pipe of the grid and has an offset length from the track to the pipe the diameter of the bottom grid pipe plus 3/16 of an inch. The Mega-Track hanger Long has two different track hanging slots so that it will work with either 1-1/2" or 1-1/4" schedule 40 pipe grids.

The Mega-Track Hangers use a Mega-Gridlock half to fasten over the pipe and secure from below with four 5/16" socket head screws. The Mega-Gridlock half has slots along the edge that act like a wrench to hold the four Nylock nuts from turning during installation. Only a slight downward pressure with your fingers is required to hold a nut in place for installation. The track hanger slides over the track prior to placing the track in position. Support track approximately every 4 feet.

  • Working Load Limit 300 lbs
  • Dimensions: 3.65" x 3.65"
  • Weight: 1.22 lbs
  • Finish: Black Anodized
  • Hardware: (4) 5/16" x 2" socket head cap screws and nylock nuts
  • Minimum Size: 1-1/4" pipe (1.66 OD)
  • Maximum Size: 2.05 OD Truss Tube
