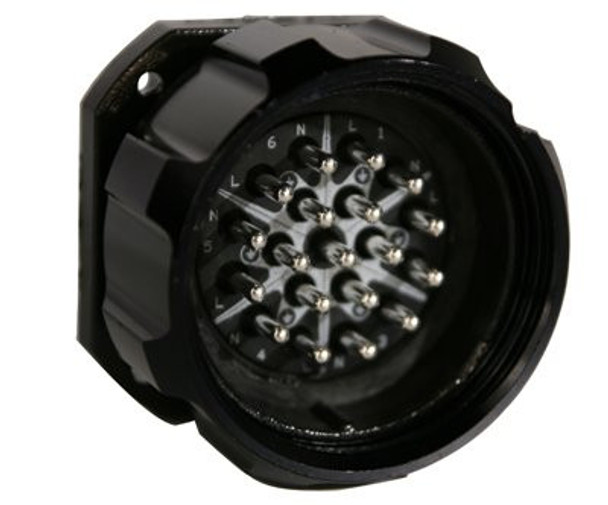

LSC 19-Pin Male Panel Mount Connector, Crimp Style

LSC 19 Pin Panel Mount Male Connector with crimp contacts.

FEATURES

• Proprietary anti-rotation design features 12 interlocking keys to help prevent spinning of the interior within the male and female housings
• Prevents mis-alignment of male and female circuit conductors and unmateable or mismatched connections
• Helps prevent broken conductors and loose or damaged ground rings
• Each circuit can carry up to a maximum of 23 Amps continuous load
• Machined aluminum housing with hard black anodized finish provides enhanced durability
• Silver plated brass contacts for high conductivity
• Interiors are clearly and permanently marked on front and back for easy wiring and circuit identification

SPECIFICATIONS

• Voltage Rating: 600 VAC
• Current Rating: 23 Amps
• Operating Temp: -55˚ to +60˚ degrees C
• Ingress Protection IP67: watertight when mated
• Shells: Machined Aluminum
• Finish: Hard Black Anodized
• Insert: Silicone
• Conductor Size: #12 - #16 AWG
• Contacts: Silver Plated Brass
• Cable Entry: Standard PG29 0.55" to 1.00", PG36 Version 0.95" to 1.25"
• Height: 2.25 in.
• Width: 2.25 in.
• Depth: 1.57 in.
• Color: Black
• Certifications: UL
