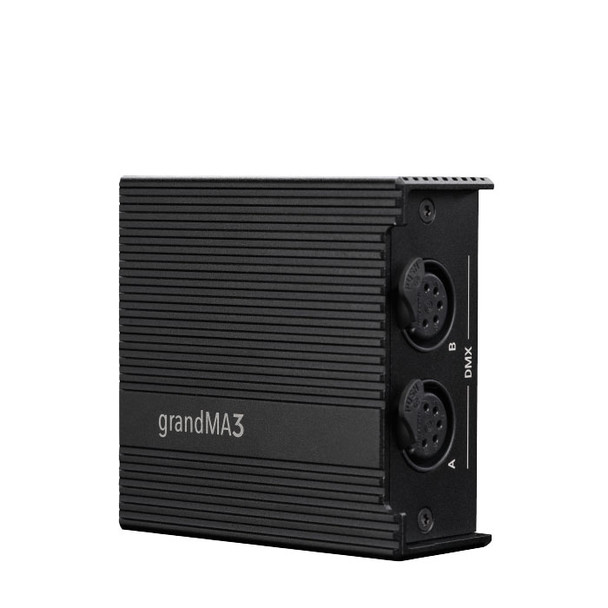

MA Lighting grandMA3 onPC DMX-Key 4,096 USB Key

The grandMA3 onPC DMX-key is a powerful solution for achieving professional lighting results in compact and flexible environments. It unlocks 4 096 parameters directly via a simple USB-C connection to the free of charge grandMA3 onPC software. It provides the performance and reliability of the grandMA3 platform, eliminating the need for dedicated consoles or complex infrastructure.

True plug-and-play operation means there is no configuration or networking setup required, and no technical barriers. Simply connect the DMX-key to your PC, launch the grandMA3 onPC software, and you're ready to start working. This makes it an ideal choice for small venues, clubs, theatres, houses of worship, and television studios, where space, budget and simplicity are important considerations.

The grandMA3 onPC DMX-key is equally compelling for system designers and integrators. Its compact form factor and robust feature set make it perfectly suited to permanent installations in museums, theme parks, stadiums and architectural projects. Anti-slip strips at the bottom and guide rails, including a matching screw set, allow for easy mounting in system racks or cases. With full access to unrestricted grandMA3 onPC software, you benefit from an MA-ready installation offering long-term flexibility, scalability and compatibility with professional workflows.

The grandMA3 onPC DMX-key combines simplicity, power and the reliable MA Lighting ecosystem.

FEATURES

• Real-time control of 4,096 parameters in combination with grandMA3 onPC
• Lockable USB-C connector
• Status LED
• Robust Aluminium housing
• Anti-slip strips
• Easy mounting with guide rails and screws

WHAT'S INCLUDED

• (1) grandMA3 onPC DMX-key
• (1) MA cable USB 2.0, type C locking screw to type C, length 0.5m
• (1) MA set of mounting screws (2x screws M5 x 12 and 2x nut M5)
• (1) Safety Instructions

SPECIFICATIONS

• Parameters: 4,096 (HTP/LTP)
• Parameters Mode2: not applicable (no Mode2)
• Connectors:
  • (2) DMX512-A Out (5-pin XLR female)
  • (1) USB 2.0 (type C)
• Operating voltage/ Supply voltage: USB powered (5 V DC)
• Power max.: 2.5 VA
• Operating Temperature: 0 °C up to 40 °C / 32 °F up to 104 °F
• Dimensions (WxDxH): 3.54 x 3.46 x 1.5 in. (90 x 88 x 38 mm)
• Net weight: 8.5 oz (0.24 kg)
