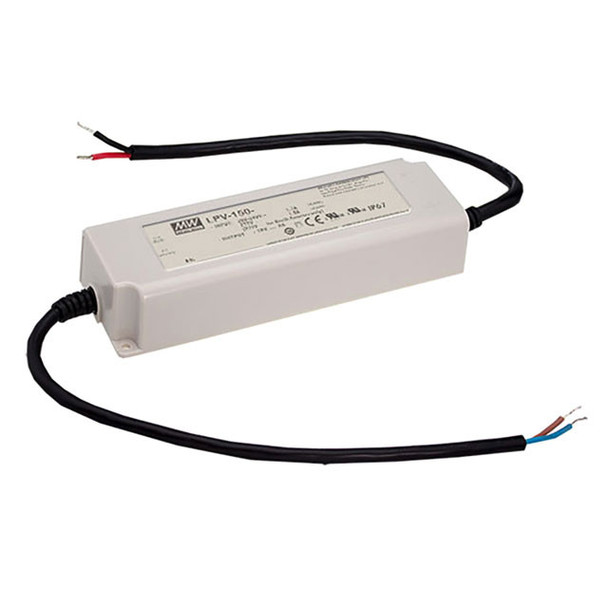

Mean Well LPV-150-24 Single Output Switching Power Supply 151W 24V 6.3A

Mean Well LPV-150-24 Single Output Switching Power Supply 151W 24V 6.3A (LED Driver)

FEATURES

• Constant voltage design
• Universal AC input 180 ∼ 305VAC
• Fully encapsulated with IP 67 level
• Class II power unit, no FG
• Short circuit / Overload / Over voltage protection
• Fully isolated plastic case
• Cooling by free air convection
• 100% full load burn-in test
• Low cost, high reliability
• Type "HL" for use in class I, division 2 hazardous (classified)
• Suitable for LED related fixture
• 2 year warranty

SPECIFICATIONS

OUTPUT

• DC Voltage: 24V
• Max Rated Current: 6.3A
• Current Range: 0 ∼ 6.3A
• Rated Power: 151.2W

INPUT

• Voltage Range:
  • 180 ∼ 305VAC
  • 254 ∼ 431VDC
• Frequency Range: 47 ∼ 63Hz
• Typical Efficiency: 89%
• Typical AC Current: 1.7A/115VAC, 1.5A/277VAC

ENVIROMENT

• Operating Temperature: -25°C ~ 65°C (With Derating)
• Operating Humidity: 20 ~ 90%
• Rating: IP67

PHYSICAL

• Dimming technologies: No Dimming
• Control signals: No control signal
• Termination Style: Wire Leads
• Mounting Type: Chassis Mount
• Dimension: 7.52 x 2.48 x 1.48 in. (191 x 63 x 37.5 mm)
• Weight: 1.63 lbs

APPROVALS

• Approval Agency: CE, cURus
