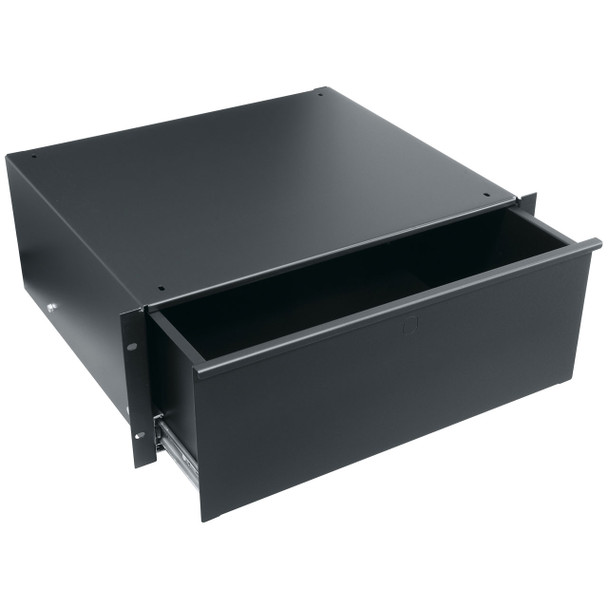

Middle Atlantic UD4 Utility Drawer 4 Space
- MPN:
- UD4
- Availability:
- Usually ships within 2 business days when in stock.
Description
The UD Series drawers offer an economical rack storage solution. Full extension ball bearing slides extend a full 14" to reveal inside dimensions measuring 15-7/8" wide by 14-1/2" deep. Each model comes with a face formed drawer pull. The UD Rack Drawer has fully enclosed design to keep contents secure. User-installed latch and keylock are available options. Black powder coat finish.
FEATURES
- 4U
- Inside dimensions 15-7/8" wide by 14-1/2" deep
- Fully enclosed design to keep contents secure
- Shipped fully assembled and ready to install
- Steel construction with black powder coat finish
- Accepts optional user-installed keylock (KYLK) or latch (LATCH)
SPECIFICATIONS
- Rack Units: 4 RU
- Material: Steel
- Finish: Black Powder Coat
- Lock: No
- Mounting Points: 2
- UL Load Capacity: 50 lbs (22.7 kg)
- Depth: 15.9 in. (40.3 cm)
- Height: 7 in. (17.8 cm)
- Width: 19 in. (48.3 cm)
- Weight: 21.1 lbs (9.6 kg)
- Certifications: UL Listed
