Obsidian Control Systems

Obsidian NX W Console

Write a Review
MPN:
NXW888
Availability:
Coming soon

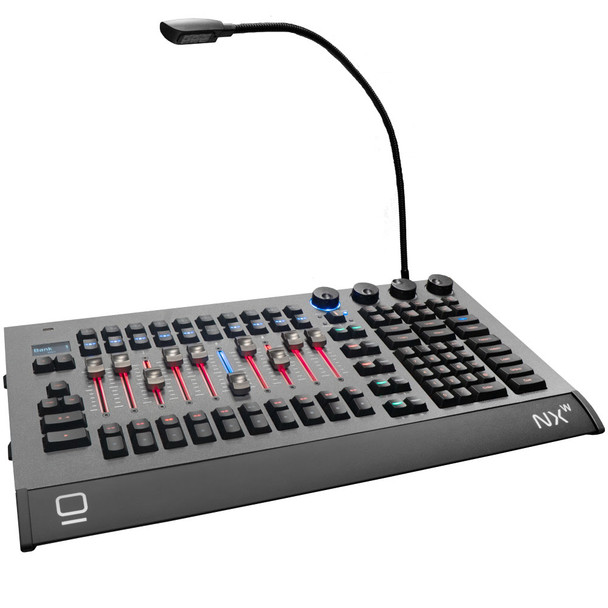

  • Obsidian NX W Console with desk lamp
  • Obsidian NX W Console front
  • Obsidian NX W Console left side
  • Obsidian NX W Console rear
  • Obsidian NX W Console right side
$3,249.00

Out of stock

Frequently bought together:

Description

The Obsidian Control Systems NX W is the complementary USB control surface to Obsidian Control Systems ONYX platform, utilizing a comparable ergonomic layout to the NX K and NX P. Through its USB-C connection the NX W provides a responsive, professional hardware surface to operate ONYX on any PC system without compromises. Any user of ONYX will feel instantly familiar with the NX W and no setup or additional installation is required. Simply plug it into a user-provided PC with ONYX and get started instantly.

The NX W provides extensive connectivity with 4 DMX/RDM ports, Gigabit Ethernet Output for X-NET and streaming DMX data while unlocking 16 Universes of control when connected to ONYX on a PC. A protected USB slot allows the installation of an ONYX License Key to expand the system up to 128 Universes.

The NX W has been designed for accuracy and speed with two types of optical keys that are optimized for playback performance and fast keypad entry, with smooth RGB backlighting and perfect angle to avoid missed cues and mistyped commands. Custom designed motorized faders are outlined with LED illumination that allow the user to clearly identify the playback type and status at any time, even in dark environments.

FEATURES

  • Fully featured control surface, portable and lightweight
  • 10 motorized faders with RGB backlight
  • Low Latency optical buttons with RGB backlight
  • DMX, RDM, sACN, Art-Net support
  • 16 Universe ONYX License
  • Plug and Play USB-C device for any PC with ONYX

WHAT'S INCLUDED

  • NX W
  • RGB LED Desk Lamp, angular XLR connector
  • Dust Cover
  • Obsidian USB-C Cable
  • USB A-C Combo Recovery Key with lanyard
  • 1.5 m locking power cable

SPECIFICATIONS

SURFACE

  • 10x 60mm motorized RGB backlit playback faders, each with 4x function-assignable buttons
  • 10x customizable multi-function keys
  • Master Go section with Go, Pause, Snap and Release
  • 4x digital rotary encoders with push function and RGB status LED for fixture parameter control
  • Blind/HighLight/Last/Next buttons
  • Full numerical keypad and command keys
  • All buttons are high speed optical with RGB backlight

CONNECTIONS

  • 4x DMX / RDM Universe In/Out: 5pin locking XLR
  • Network: 1x Gigabit RJ45 Ethernet for Art-Net, sACN and ONYX X-Net
  • Locking Power In / Thru
  • USB-A Expansion slot for ONYX License Keys
  • USB-C Input to PC

SIZE / WEIGHT

  • Length: 12.2 in. (310 mm)
  • Width: 21.3 in. (540 mm)
  • Height: 3.15 in. (80 mm)
  • Weight: 13.2 lbs. (6 kg)

ELECTRICAL

  • 100-240V nominal, 50/60 Hz
  • 30W

REQUIREMENTS

  • Windows 11 64bit (Home/Pro/Enterprise)
  • 8th generation Intel Core Processor or newer (or comparable AMD processor)*
  • 16 GB RAM
  • SSD storage drive
  • 40GB+ available disk space for software, DYLOS factory content and storage
  • Widescreen monitor, minimum 1280 wide, 768 high (capacitive multi-touchscreen recommended)
  • USB-C
