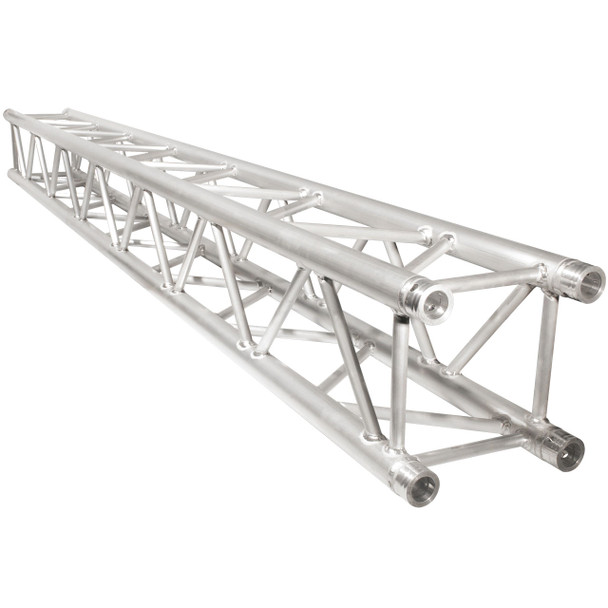

Trusst Truss 12"/290mm x 9.8ft/3m length

TRUSST 290mm (12 in.) Truss, 3m (9.8ft) overall length (includes 1 set of connectors).

TRUSST® is comprised of modular aluminum components that combine to create nearly limitless configurations. Truss can be used for a multitude of applications when used in combination with TRUSST® Corners, Base Plates, Accessories and Clamps.

TRUSST® CT-290 series 290 mm box truss is available in a variety of lengths from 0.25 m to 3 m (0.8 – 9.84 ft)) to suit most design demands. All TRUSST® sticks are TUV certified and all TRUSST® items are fabricated by SLV certified welders and made from 6082-T6 alloy aluminum. TRUSST® products use a standard conical connection system which allows for quick assembly while maintaining sound structural stability. TRUSST® works seamlessly with other major brands that utilize the same conical connection.

FEATURES

• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Independently tested and TUV-certified for safety and uniformity
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST® accessories to create an astonishing and custom presentation
• Available in many lengths for mobile entertainers, productions, nightclubs and retail stores
• Includes connecting hardware

WHAT'S INCLUDED

• (1) CT290-430S 3 meter long 12" x 12" straight box truss
• (1) CT-CONKIT set of connectors

SPECIFICATIONS

• Length: 9.84 ft (3.0 m)
• Dimensions: 11.42 x 11.42 in. (290 x 290 mm)
• Outer diameter tube: 2 in. (50 mm)
• Diagonal bracing: 0.75 in. (20 mm)
• Center point load: 3,036 lbs (1,377 kg)
• Distributed load: 6,075 lbs (2,756 kg)
• Wall thickness: 0.08 in. (2 mm)
• Weight: 38.58 lbs (17.5 kg)
• Approvals: TUV, SLV

Compatible with Cosmic Truss by GLP, Global Truss America by American DJ, Trusst by Chauvet Lighting, and many others models of truss with 2 inch/48-50 mm diameter.
