Ultratec Radiance Hazer Touring Case with Fan, Gently Used

Used – Like New/Demo Unit - This item has been well-cared-for, has undergone limited use, and is still in excellent working condition. This unit was a demo unit from the LDI trade show. It may show limited signs of wear, i.e. small scratches or cosmetic errors. Includes the original packaging from the manufacturer.

** This unit is in the original manufacturer packaging. We have not opened the box to take photos of this particular unit.

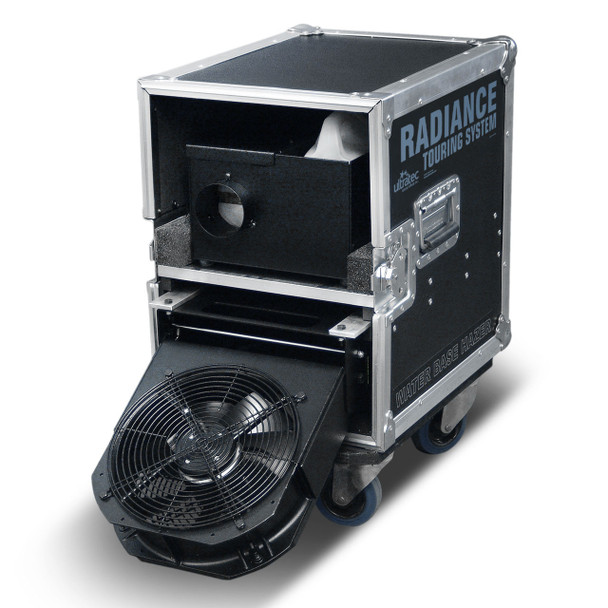

Ultratec´s Radiance Touring System combines the Radiance Water Based Hazer and the powerful Versa Fan into a compact road case. The Radiance Hazer is mounted above the Versa Fan so the haze is in the air stream after the fan. This ensures that residue does not build up in the fan which can cause damage. The Versa Fan is mounted on brackets that slide easily when the fan is pulled out into set up position and glides back into place for storage. The fan can be adjusted to different angles depending on the required location for the haze dispersion. The rear door allows easy access for either using the remote, DMX or the stand alone mode.

Radiance

• Ultratec´s Radiance Haze Machine is the next major advancement in Water Based Haze Technology. Once again, Ultratec is setting new standards that all other haze machines will be measured against. Features include: Built-In DMX that controls the Haze Output, the Internal Fan as well as the External Versa Fan when plugged in to the back of the Radiance. This combination offers excellent Haze Control and Even Dispersion. The Radiance can also be operated by an optional Remote or by utilizing the on board variable settings. Additional features include an IDC removable Power Cable and multiple use Bracket. The Radiance uses the Luminous 7 Haze Fluid which is a proven fluid that offers the best in low consumption and great hang time. It utilizes the various sizes of the Ultratec fluid containers.
• Serviceability is key; built with Ultratec’s innovative 4-Port Rapid Clean Vaporizer. It can be cleaned and returned to service in less than 15 minutes.

Versa Fan

• The Versa Fan is compact, versatile and powerful. It can be used in many applications for pushing and lifting an equal distribution of fog, haze, bubbles or snow across the stage. The unique design incorporates an angle ratchet attached to a base for various locking positions.

SPECIFICATION

OUTPUT

• Run Time: Continuous
• Reheat Time: 8 minutes
• Fluid Consumption: 6.7 cc per/ min (Full Output)
• Technical Benchmark Spec.: Continuous - 400 cc/ hour.
• Competitive Comparison: 10,000cfm
• Power Cord: 6 ft (1.8 m)
• Heater Watts: 500 Watts
• Rating: 7 Amps (5 Amps for Radiance & 2 Amps for Versa Fan)
• Regulatory Compliance: This product has been certified by QPS/UL Standards Canada Inc.

RECOMMENED FLUID

• 4L Luminous 7 Haze Fluid4L Luminous 7 Haze Fluid

VERSA FAN

• Competitive Comparison: 1000 CFM
• Noise Level: 73 dB
• Length: 8 in / 20 cm
• Width: 12 in / 31 cm
• Height: 16 in / 41 cm
• Net Weight: 17 lbs / 8 kgs
• Power Cord: 6 ft / 1.8 m
• Rating: 2 amps @ 110 volts @ 60 hz
• Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.

CASE

• Length: 23 in. (58 cm); with cover off for operation: 19 in. (48 cm)
• Width: 15 in. (38 cm)
• Height: 25 in. (64 cm)
• Net Weight: 95 lb (43 kg)
• The Radiance Touring System is designed to accommodate a 2 litre jug of fluid ONLY.

SHIPPING DIMENSIONS

• Length: 24 in. (61 cm)
• Width: 16 in. (41 cm)
• Height: 26 in. (66 cm)
• Weight: 110 lb (50 kg)

SAFE FOR USE ON LIVE STAGE PERFORMANCES Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.
