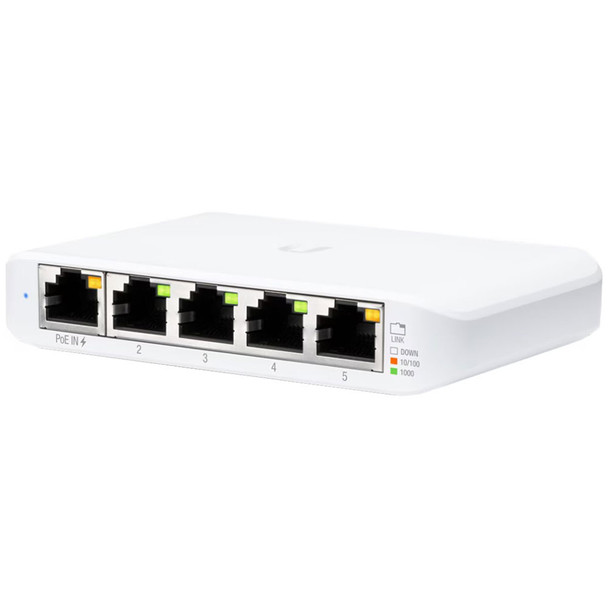

UniFi USW Flex Mini 5-Port Switch

A UniFi Network compact 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter. Expand your network by including the Flex Mini 5-Port Managed Network Switch from Ubiquiti in your installation. Featuring five ethernet ports, this compact managed switch may be placed between computers and a larger main switch, delivering fast and responsive connections with compatible devices.

LAYER 2 FEATURES

• Egress Rate Limit: Yes
• Flow Control: Yes
• Storm Control: Yes
• Multicast & Broadcast Rate Limiting: Yes
• Port Isolation: Yes
• Port Mirroring: Yes
• Jumbo Frames: Yes

SPECIFICATIONS

• Port Layout: 1 GbE RJ45, (5) (1G/100M/10M)
• Form Factor: Compact desktop

PERFORMANCE

• Switching Capacity: 10 Gbps
• Total Non-Blocking Throughput: 5 Gbps
• Forwarding Rate: 7 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 2,000

HARDWARE

• Max. Power Consumption: 2.5W
• Power Method:
  • (1) USB Type-C, 5V DC, 1A
  • (1) PoE
• Power Input Method: USB Input or PoE
• Power Supply: AC/DC, external, 5W
• Supported Voltage Range: 4.8—5.2V DC/USB, 44V—57V PoE
• Management: Ethernet
• Heat Dissipation: 6.8 BTU/hr
• Enclosure Material: Polycarbonate
• Mount Material: Polycarbonate
• ESD Protection: Air: ± 16kV, contact: ± 12kV
• Dimensions: 4.2 x 2.8 x 0.8 in. (107 x 70 x 21 mm)
• Weight: 150 g (5.3 oz)
• Ambient Operating Temperature: -5 to 45° C (23 to 113° F)
• Ambient Operating Humidity: 10 to 90% noncondensing
• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, Anatel: 14501-20-08356

SOFTWARE

• Application Requirements: UniFi Network version 5.12.5 and later
