80/20 #3360 15 Series 5/16-18 Standard Anchor Fastener Assembly (20 pcs)

80/20 15 Series 5/16-18 Standard Anchor Fastener Assembly

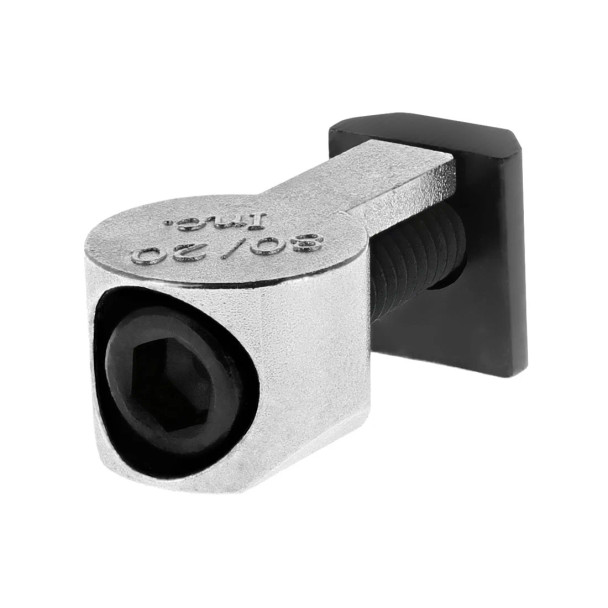

The standard 80/20 anchor fastener assembly is comprised of a socket head cap screw, cam, and T-nut. It is one of the strongest internal fastening methods, offering a long-lasting connection. The anchor fastener provides infinite positioning along the mating profile’s T-slot, allowing a large degree of adjustability. The anchor fastener provides 90 degree, flush, vibration resistant connections, especially convenient where space restrictions apply. This connection method requires a counterbore machining service on the mounting profile. Additional Information: Cams are available separately (without the socket head cap screw and T-nut) for instances where you want to create your own custom assembly.

DETAILS

• Quantity: 20 pieces
• Series: 15 Series
• T-Nut: Standard Slide-in
• Material: Zinc
• Cam Color: Bright
• ESD: No
• Dimensions:
  • A: 1.383 in.
  • B: 0.309 in.
  • C: 0.625 in.
  • D: 0.25 in.
  • E: 0.81 in.
  • F: 0.70 in.
  • G: 0.625 in.
  • H: 5/16-18 X 1.30” SHCS
• Weight: 0.101 lbs. each
